流量卡、CPE锁频教程及工具分享

引言：本来是给农村的老人使用，移动联通的信号都不好，电信的信号好些，流量卡，一个月180G，本来是用的蒲公英的4g路由器，卡的信号太差了，我又买了华为的b316-855，4g路由器，这个信号有好转，测速能到12M左右，我搜了下老家附近只有电信的B5频段，B5的网速最高也就20M，暂时也就不再折腾了，后续如果再折腾就考虑再弄一张卡叠加网速了。

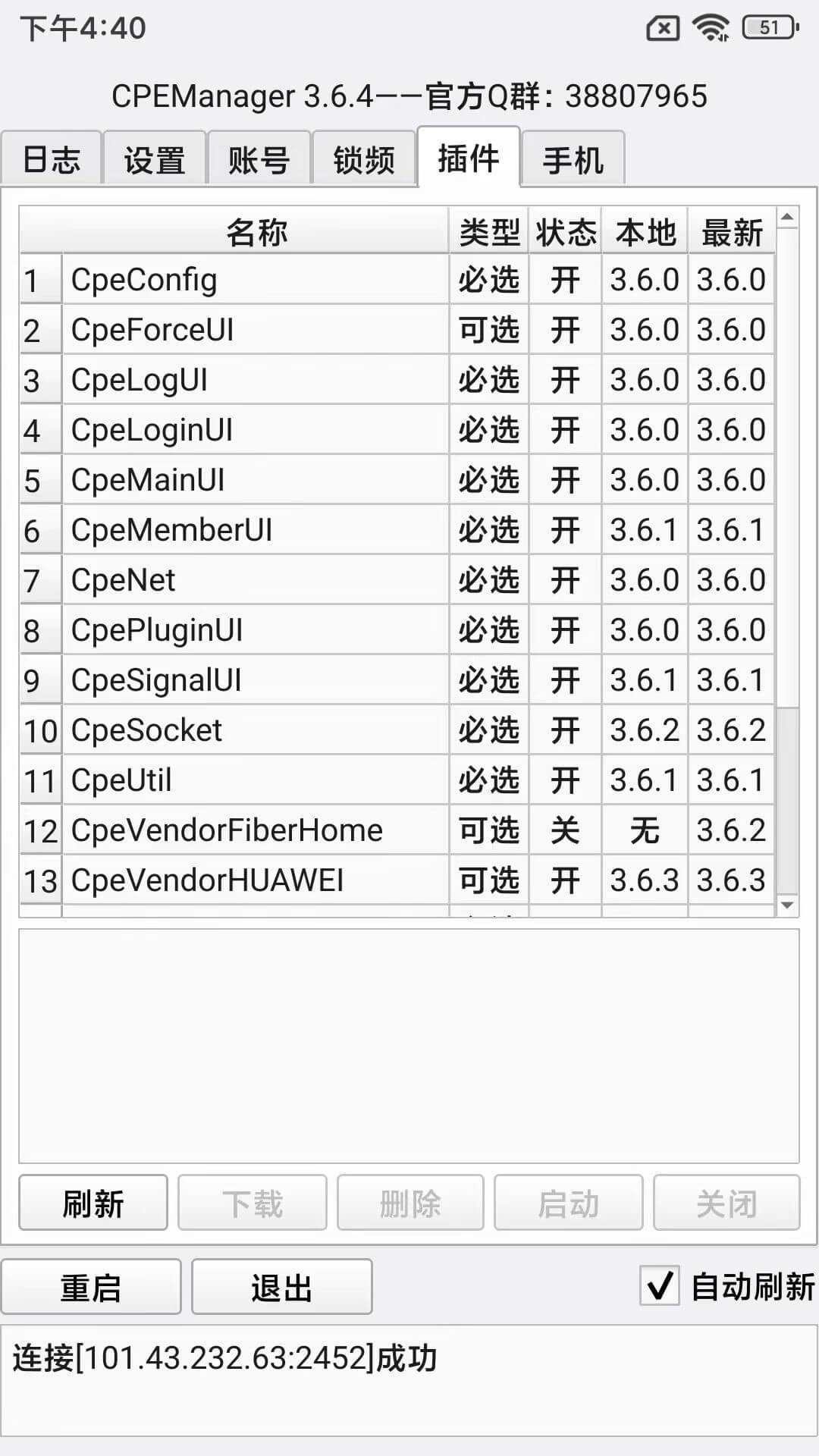

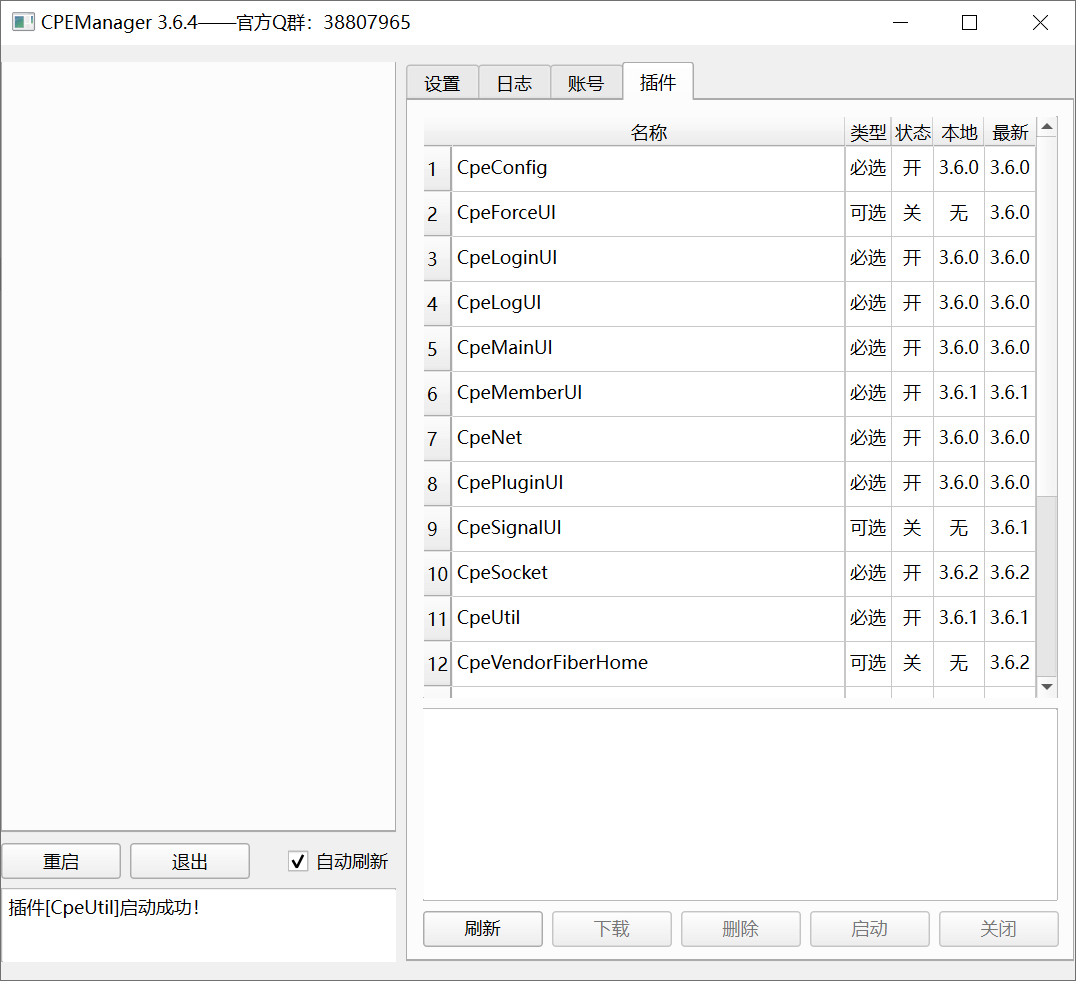

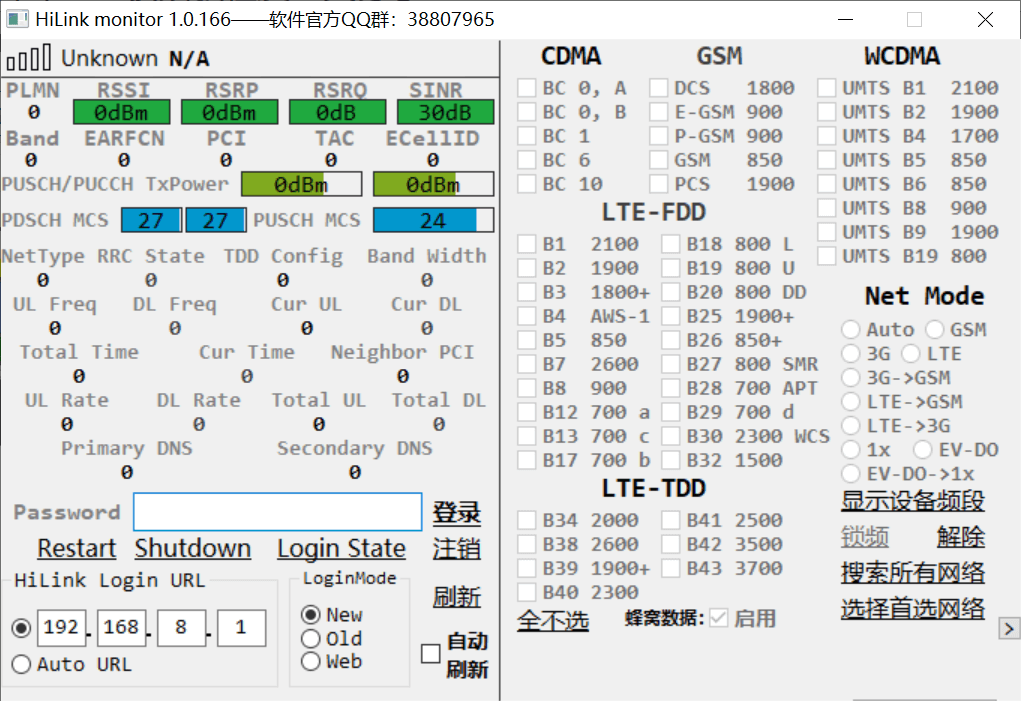

近期折腾这些东东的时候下载了不少好工具，有电脑端的也有安卓端的。

首先说下华为路由器如何使用自带的开发者选项进行锁频，

1. 1. 手机或者电脑连接到CPE的 Wi-Fi（或者电脑连接到CPE的LAN接口）。如果是手机，请在浏览器里调整为电脑模式，在浏览器地址栏中输入192.168.8.1登录CPE ，输入管理页面的登录密码进入管理页面。

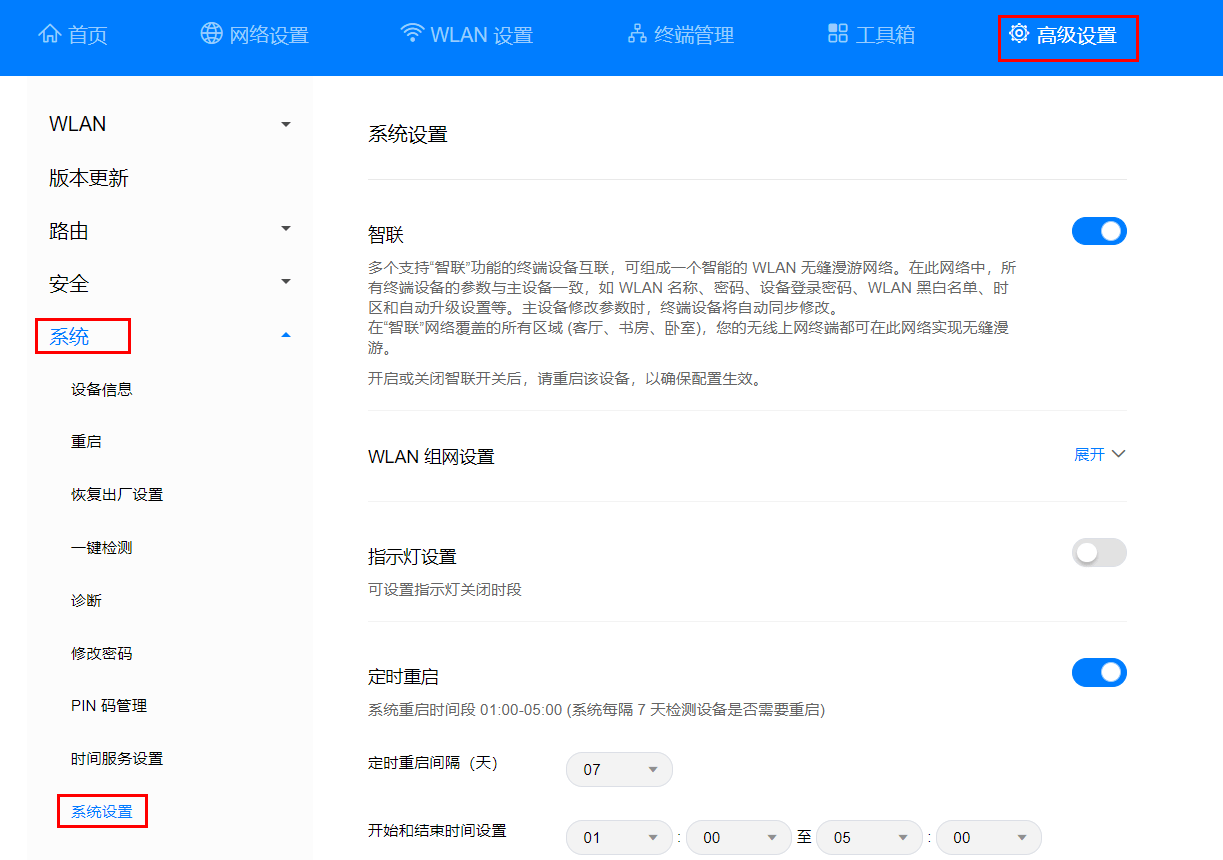

1. 1. 选择 高级设置 > 系统 > 系统设置，下拉至页面底部点击开发者选项输入登录密码后即可进入开发者选项界面。

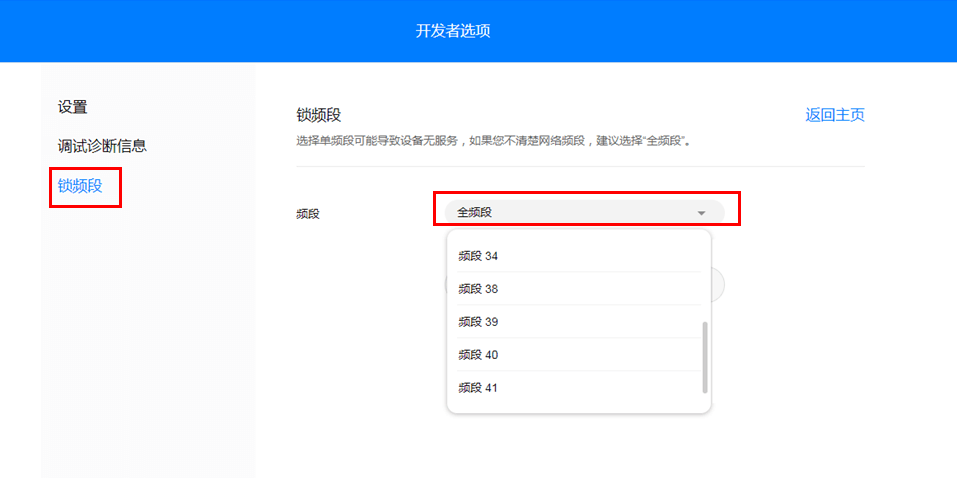

1. 1. 选择 锁频段，根据需要在频段下拉框中选择对应的单一频段，点击保存。

1. 至此华为路由器的锁频结束。以下是官方提醒

• 5G CPE产品不支持锁5G频段。
• 选择单频段可能导致设备无服务，如果您不清楚网络频段，建议选择全频段。

工具分享

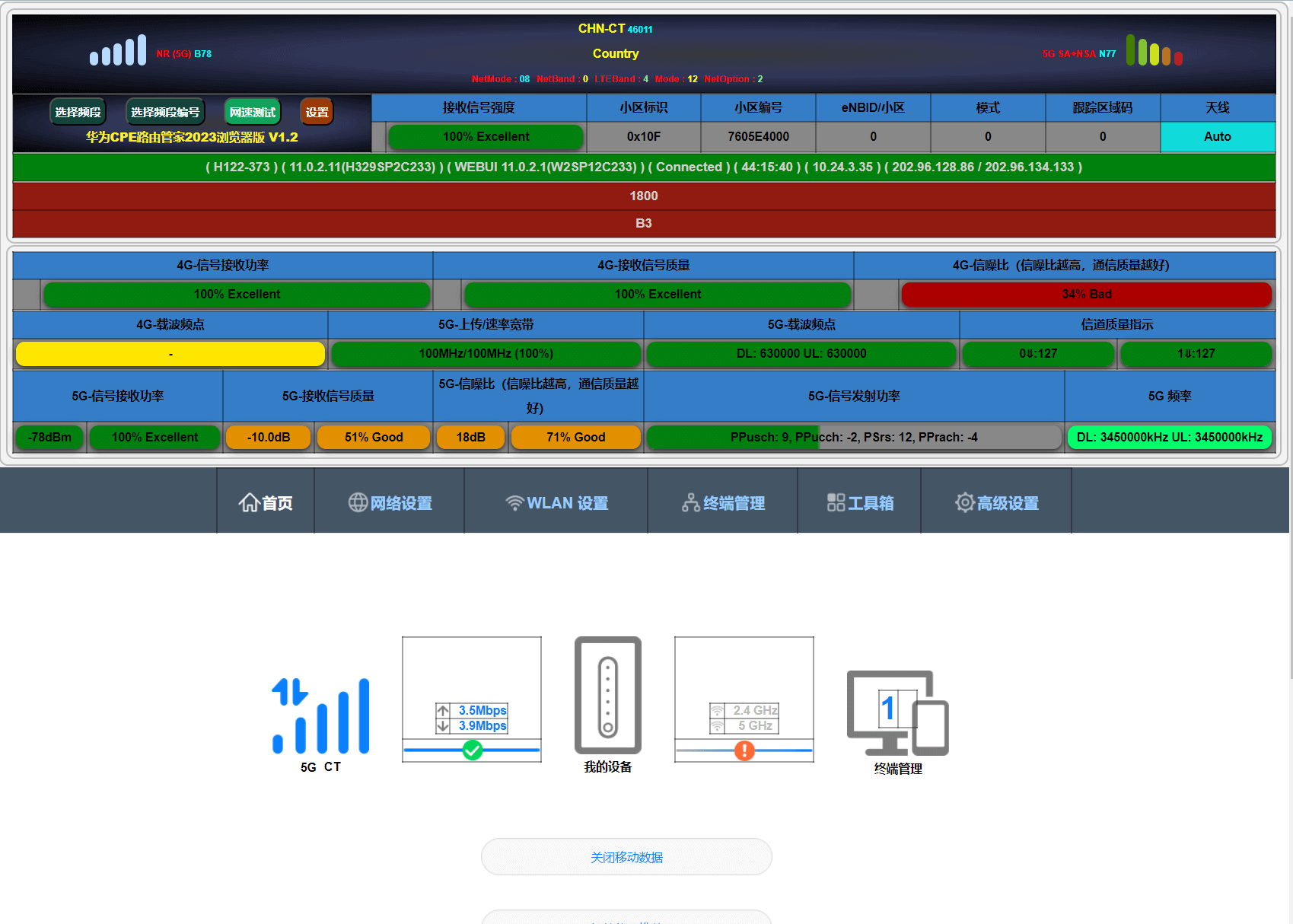

PC端锁频工具，作者是恩山大佬，通过浏览器开发者选项直接修改，很方便，功能也很强大，作者在恩山也更新了使用教程，我感觉比官方的都好用，持续更新地址： 点击直达 支持型号如下：

不支持型号：

B535-932 预付费版本、华为智选(H-381 未适配)

其他支持的华为设备：

B311As-853

B312-939

B316-855

B525s-23a

B525s-65a

B525s-95a

B535-932

B612s-25d

B618s-22d

B628-350

B715s-23c

B818-260

B818-263

H112-370 5G

H112-372 5G

H112-373 5G（新增：支持国际版） B315S-936

使用教程： 浏览器新建一个书签，将以下代码复制进去，保存，打开华为的路由器界面，192.168.8.1.登录后点击一下书签

javascript: ftb();

var isLongID=false;
var mainband=null;
var _2ndrun=null;
var havename = false;
var suspend=0;
var status="";
var netmode="";
var signal="";
var nroption="";
var arfcn="";
console.log("type: netmode , signal , status"),
window.setInterval(Main, 300);

function Main() {
1 != suspend && ($("#dhcp_mask").show(),$("#dhcp_dns").show(),$('#apn_list_input_dns_operate').show(),$('#network_preferred_mode_control_father').show(),$('#network_5g_control_father').show(),$('#network_4g_control_father').show(),$('#network_3g_control_father').show(),$('#dialup_network_mode_control_father').show(),$('#network_band_control_father').show(),$('#LTE_band_control_father').show(),$('#LTE_band').show(),$('#mobilesearchBtnSave').show(),$('#mobilesearch_input_support_5G_switch_operate').show(),$('#mobilesearch_network_mode_5G').show(),$('#mobilesearch_btn_save_div').show(),$('#mobilesearch_input_support_4G_switch_operate').show(),$('#mobilesearch_LTE_band_select').show(),$('#mobilesearch_LTE_band_list_items').show(),$('#mobilesearch_network_notes').show(),$('#mobilesearch_input_support_3G_switch_operate').show(),$('#apn_connection_mode').show(),$('#eths-manual-mac').show(),$('#secondary_dns').show(),$('#wanspeed').show(),$('#dualntwk_ipv4').show(),$('#dualntwk_ipv6').show(),$('#dia_trace_maxhops_father').show(),$('#led_switch_content').show(),$('#ip_type').show(),$('#antenna_page').show(),$('#wifi_save_power_wrapper').show(),$('#wifi_save_power').show(),$('#wifiadv_atuoApti_div').show(),$('#LAN_LAN_Ping').show(),$('#statistics_daily_flow_switch').show(),$('#wifiadv_2g_mode_div').show(),$('#wifiadv_2g_maxassociate_div').show(),$('#wifiadv_5g_mode_div').show(),$('#wifiadv_5g_maxassociate_div').show(),$('#developer_mode_div').show(),$('#mlog').show(),$('#calltrace').show(),$('#band').show(),$('#apklog').show());
getNetmode(), getStatus(), getInfo(), Signl(), ReadHardBand(), B_4GType(), PlmnPh(), DeviceBoot();
}

function arfcntoband(arfcn) {
if (arfcn > 422000 && arfcn < 434000) return '1';
if (arfcn > 386000 && arfcn < 398000) return '2';
if (arfcn > 361000 && arfcn < 376000) return '3';
if (arfcn > 173800 && arfcn < 178800) return '5';
if (arfcn > 524000 && arfcn < 538000) return '7';
if (arfcn > 185000 && arfcn < 192000) return '8';
if (arfcn > 145800 && arfcn < 149200) return '12';
if (arfcn > 149200 && arfcn < 151200) return '13';
if (arfcn > 151600 && arfcn < 153600) return '14';
if (arfcn > 172000 && arfcn < 175000) return '18';
if (arfcn > 158200 && arfcn < 164200) return '20';
if (arfcn > 305000 && arfcn < 311800) return '24';
if (arfcn > 386000 && arfcn < 399000) return '25';
if (arfcn > 171800 && arfcn < 178800) return '26';
if (arfcn > 151600 && arfcn < 160600) return '28';
if (arfcn > 143400 && arfcn < 145600) return '29';
if (arfcn > 470000 && arfcn < 472000) return '30';
if (arfcn > 402000 && arfcn < 405000) return '34';
if (arfcn > 514000 && arfcn < 524000) return '38';
if (arfcn > 376000 && arfcn < 384000) return '39';
if (arfcn > 460000 && arfcn < 480000) return '40';
if (arfcn > 499200 && arfcn < 537999) return '41';
if (arfcn > 743334 && arfcn < 795000) return '46';
if (arfcn > 790334 && arfcn < 795000) return '47';
if (arfcn > 636667 && arfcn < 646666) return '48';
if (arfcn > 286400 && arfcn < 303400) return '50';
if (arfcn > 285400 && arfcn < 286400) return '51';
if (arfcn > 496700 && arfcn < 499000) return '53';
if (arfcn > 334000 && arfcn < 335000) return '54';
if (arfcn > 422000 && arfcn < 440000) return '65';
if (arfcn > 422000 && arfcn < 440000) return '66';
if (arfcn > 147600 && arfcn < 151600) return '67';
if (arfcn > 399000 && arfcn < 404000) return '70';
if (arfcn > 123400 && arfcn < 130400) return '71';
if (arfcn > 295000 && arfcn < 303600) return '74';
if (arfcn > 286400 && arfcn < 303400) return '75';
if (arfcn > 285400 && arfcn < 286400) return '76';
if (arfcn > 620000 && arfcn < 680000) return '77';
if (arfcn > 620000 && arfcn < 653333) return '78';
if (arfcn > 693334 && arfcn < 733333) return '79';
}

function PlmnPh() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/net/current-plmn', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
if ($xml.find('FullName').text() == "") {
$("#brand").html("No Service").css('color', 'red')
} else {
$("#brand").css('color', 'yellow');
$('#brand').html($xml.find('FullName').text());
}
if ($xml.find('Numeric').text() == "") {
$(".nu").css('display', 'none');
} else {
$(".nu").css('display', '');
$('#numer').html($xml.find('Numeric').text());
}
if ($xml.find('Numeric').text() == "41201") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "41250") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "41240") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "41220") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "41280") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "41255") {$('#name').html('Afghanistan');
} else if ($xml.find('Numeric').text() == "27603") {$('#name').html('Albania');
} else if ($xml.find('Numeric').text() == "27601") {$('#name').html('Albania');
} else if ($xml.find('Numeric').text() == "27602") {$('#name').html('Albania');
} else if ($xml.find('Numeric').text() == "60302") {$('#name').html('Algeria');
} else if ($xml.find('Numeric').text() == "60301") {$('#name').html('Algeria');
} else if ($xml.find('Numeric').text() == "60309") {$('#name').html('Algeria');
} else if ($xml.find('Numeric').text() == "60303") {$('#name').html('Algeria');
} else if ($xml.find('Numeric').text() == "54411") {$('#name').html('American Samoa');
} else if ($xml.find('Numeric').text() == "21303") {$('#name').html('Andorra');
} else if ($xml.find('Numeric').text() == "63104") {$('#name').html('Angola');
} else if ($xml.find('Numeric').text() == "63102") {$('#name').html('Angola');
} else if ($xml.find('Numeric').text() == "365010") {$('#name').html('Anguilla');
} else if ($xml.find('Numeric').text() == "365840") {$('#name').html('Anguilla');
} else if ($xml.find('Numeric').text() == "344030") {$('#name').html('Antigua and Barbuda');
} else if ($xml.find('Numeric').text() == "344050") {$('#name').html('Antigua and Barbuda');
} else if ($xml.find('Numeric').text() == "344920") {$('#name').html('Antigua and Barbuda');
} else if ($xml.find('Numeric').text() == "722310") {$('#name').html('Argentina');
} else if ($xml.find('Numeric').text() == "722010") {$('#name').html('Argentina');
} else if ($xml.find('Numeric').text() == "722020") {$('#name').html('Argentina');
} else if ($xml.find('Numeric').text() == "722034") {$('#name').html('Argentina');
} else if ($xml.find('Numeric').text() == "28301") {$('#name').html('Armenia');
} else if ($xml.find('Numeric').text() == "28304") {$('#name').html('Armenia');
} else if ($xml.find('Numeric').text() == "28310") {$('#name').html('Armenia');
} else if ($xml.find('Numeric').text() == "28305") {$('#name').html('Armenia');
} else if ($xml.find('Numeric').text() == "36302") {$('#name').html('Aruba');
} else if ($xml.find('Numeric').text() == "36301") {$('#name').html('Aruba');
} else if ($xml.find('Numeric').text() == "50506") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50514") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50524") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50504") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50510") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50508") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50536") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50521") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50501") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50538") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50502") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "50503") {$('#name').html('Australia');
} else if ($xml.find('Numeric').text() == "23205") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23201") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23211") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23208") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23206") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23203") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23207") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23215") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "23212") {$('#name').html('Alnamsa');
} else if ($xml.find('Numeric').text() == "40001") {$('#name').html('Azerbaijan');
} else if ($xml.find('Numeric').text() == "40002") {$('#name').html('Azerbaijan');
} else if ($xml.find('Numeric').text() == "40004") {$('#name').html('Azerbaijan');
} else if ($xml.find('Numeric').text() == "40006") {$('#name').html('Azerbaijan');
} else if ($xml.find('Numeric').text() == "36449") {$('#name').html('Bahamas');
} else if ($xml.find('Numeric').text() == "36439") {$('#name').html('Bahamas');
} else if ($xml.find('Numeric').text() == "42601") {$('#name').html('Bahrain');
} else if ($xml.find('Numeric').text() == "42604") {$('#name').html('Bahrain');
} else if ($xml.find('Numeric').text() == "42602") {$('#name').html('Bahrain');
} else if ($xml.find('Numeric').text() == "47007") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47003") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47010") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47001") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47009") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47002") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "47004") {$('#name').html('Bangladesh');
} else if ($xml.find('Numeric').text() == "342750") {$('#name').html('Barbados');
} else if ($xml.find('Numeric').text() == "342600") {$('#name').html('Barbados');
} else if ($xml.find('Numeric').text() == "342800") {$('#name').html('Barbados');
} else if ($xml.find('Numeric').text() == "25701") {$('#name').html('Belarus');
} else if ($xml.find('Numeric').text() == "25706") {$('#name').html('Belarus');
} else if ($xml.find('Numeric').text() == "25704") {$('#name').html('Belarus');
} else if ($xml.find('Numeric').text() == "25702") {$('#name').html('Belarus');
} else if ($xml.find('Numeric').text() == "20620") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "20606") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "20630") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "20610") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "20601") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "20605") {$('#name').html('Belgium');
} else if ($xml.find('Numeric').text() == "70267") {$('#name').html('Belize');
} else if ($xml.find('Numeric').text() == "70269") {$('#name').html('Belize');
} else if ($xml.find('Numeric').text() == "61601") {$('#name').html('Benin');
} else if ($xml.find('Numeric').text() == "61605") {$('#name').html('Benin');
} else if ($xml.find('Numeric').text() == "61602") {$('#name').html('Benin');
} else if ($xml.find('Numeric').text() == "61603") {$('#name').html('Benin');
} else if ($xml.find('Numeric').text() == "35000") {$('#name').html('Bermuda');
} else if ($xml.find('Numeric').text() == "338050") {$('#name').html('Bermuda');
} else if ($xml.find('Numeric').text() == "40211") {$('#name').html('Bhutan');
} else if ($xml.find('Numeric').text() == "40177") {$('#name').html('Bhutan');
} else if ($xml.find('Numeric').text() == "73602") {$('#name').html('Bolivia');
} else if ($xml.find('Numeric').text() == "73603") {$('#name').html('Bolivia');
} else if ($xml.find('Numeric').text() == "73601") {$('#name').html('Bolivia');
} else if ($xml.find('Numeric').text() == "21890") {$('#name').html('Bosnia-and-herzegovina');
} else if ($xml.find('Numeric').text() == "21803") {$('#name').html('Bosnia-and-herzegovina');
} else if ($xml.find('Numeric').text() == "21805") {$('#name').html('Bosnia-and-herzegovina');
} else if ($xml.find('Numeric').text() == "65204") {$('#name').html('Botswana');
} else if ($xml.find('Numeric').text() == "65201") {$('#name').html('Botswana');
} else if ($xml.find('Numeric').text() == "65202") {$('#name').html('Botswana');
} else if ($xml.find('Numeric').text() == "72432") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72424") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72416") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72405") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72417") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72418") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72400") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72430") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72415") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72402") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "72406") {$('#name').html('Brazil');
} else if ($xml.find('Numeric').text() == "348570") {$('#name').html('British-virgin-islands');
} else if ($xml.find('Numeric').text() == "348770") {$('#name').html('British-virgin-islands');
} else if ($xml.find('Numeric').text() == "348170") {$('#name').html('British-virgin-islands');
} else if ($xml.find('Numeric').text() == "52811") {$('#name').html('Brunei');
} else if ($xml.find('Numeric').text() == "52802") {$('#name').html('Brunei');
} else if ($xml.find('Numeric').text() == "52801") {$('#name').html('Brunei');
} else if ($xml.find('Numeric').text() == "28401") {$('#name').html('Bulgaria');
} else if ($xml.find('Numeric').text() == "28411") {$('#name').html('Bulgaria');
} else if ($xml.find('Numeric').text() == "28413") {$('#name').html('Bulgaria');
} else if ($xml.find('Numeric').text() == "28405") {$('#name').html('Bulgaria');
} else if ($xml.find('Numeric').text() == "28403") {$('#name').html('Bulgaria');
} else if ($xml.find('Numeric').text() == "61301") {$('#name').html('Burkina-faso');
} else if ($xml.find('Numeric').text() == "61302") {$('#name').html('Burkina-faso');
} else if ($xml.find('Numeric').text() == "61303") {$('#name').html('Burkina-faso');
} else if ($xml.find('Numeric').text() == "64201") {$('#name').html('Burundi');
} else if ($xml.find('Numeric').text() == "64208") {$('#name').html('Burundi');
} else if ($xml.find('Numeric').text() == "64203") {$('#name').html('Burundi');
} else if ($xml.find('Numeric').text() == "64207") {$('#name').html('Burundi');
} else if ($xml.find('Numeric').text() == "45601") {$('#name').html('Cambodia');
} else if ($xml.find('Numeric').text() == "45608") {$('#name').html('Cambodia');
} else if ($xml.find('Numeric').text() == "45603") {$('#name').html('Cambodia');
} else if ($xml.find('Numeric').text() == "45611") {$('#name').html('Cambodia');
} else if ($xml.find('Numeric').text() == "45602") {$('#name').html('Cambodia');
} else if ($xml.find('Numeric').text() == "62401") {$('#name').html('Cameroon');
} else if ($xml.find('Numeric').text() == "62404") {$('#name').html('Cameroon');
} else if ($xml.find('Numeric').text() == "62402") {$('#name').html('Cameroon');
} else if ($xml.find('Numeric').text() == "302290") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302610") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302270") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302370") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302490") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302710") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302620") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302380") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302220") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302660") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302320") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302680") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302650") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302220") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302500") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302610") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "302130") {$('#name').html('Canada');
} else if ($xml.find('Numeric').text() == "62501") {$('#name').html('Cape-verde');
} else if ($xml.find('Numeric').text() == "62502") {$('#name').html('Cape-verde');
} else if ($xml.find('Numeric').text() == "346050") {$('#name').html('Cayman-islands');
} else if ($xml.find('Numeric').text() == "346140") {$('#name').html('Cayman-islands');
} else if ($xml.find('Numeric').text() == "62304") {$('#name').html('Central-african-republic');
} else if ($xml.find('Numeric').text() == "62301") {$('#name').html('Central-african-republic');
} else if ($xml.find('Numeric').text() == "62303") {$('#name').html('Central-african-republic');
} else if ($xml.find('Numeric').text() == "62302") {$('#name').html('Central-african-republic');
} else if ($xml.find('Numeric').text() == "66201") {$('#name').html('Chad');
} else if ($xml.find('Numeric').text() == "66207") {$('#name').html('Chad');
} else if ($xml.find('Numeric').text() == "66203") {$('#name').html('Chad');
} else if ($xml.find('Numeric').text() == "73003") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73001") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73019") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73002") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73004") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73006") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73013") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73008") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "73004") {$('#name').html('Chile');
} else if ($xml.find('Numeric').text() == "46000") {$('#name').html('China');
} else if ($xml.find('Numeric').text() == "46003") {$('#name').html('China');
} else if ($xml.find('Numeric').text() == "46020") {$('#name').html('China');
} else if ($xml.find('Numeric').text() == "46001") {$('#name').html('China');
} else if ($xml.find('Numeric').text() == "732130") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732101") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732101") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732176") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732002") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732187") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732101") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732020") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "732154") {$('#name').html('Colombia');
} else if ($xml.find('Numeric').text() == "65401") {$('#name').html('Comoros');
} else if ($xml.find('Numeric').text() == "65402") {$('#name').html('Comoros');
} else if ($xml.find('Numeric').text() == "54801") {$('#name').html('Cook-islands');
} else if ($xml.find('Numeric').text() == "71203") {$('#name').html('Costa-rica');
} else if ($xml.find('Numeric').text() == "71220") {$('#name').html('Costa-rica');
} else if ($xml.find('Numeric').text() == "71201") {$('#name').html('Costa-rica');
} else if ($xml.find('Numeric').text() == "71204") {$('#name').html('Costa-rica');
} else if ($xml.find('Numeric').text() == "21910") {$('#name').html('Croatia');
} else if ($xml.find('Numeric').text() == "21912") {$('#name').html('Croatia');
} else if ($xml.find('Numeric').text() == "21902") {$('#name').html('Croatia');
} else if ($xml.find('Numeric').text() == "21901") {$('#name').html('Croatia');
} else if ($xml.find('Numeric').text() == "36801") {$('#name').html('Cuba');
} else if ($xml.find('Numeric').text() == "28001") {$('#name').html('Cyprus');
} else if ($xml.find('Numeric').text() == "28010") {$('#name').html('Cyprus');
} else if ($xml.find('Numeric').text() == "28022") {$('#name').html('Cyprus');
} else if ($xml.find('Numeric').text() == "28020") {$('#name').html('Cyprus');
} else if ($xml.find('Numeric').text() == "23004") {$('#name').html('Czech-republic');
} else if ($xml.find('Numeric').text() == "23002") {$('#name').html('Czech-republic');
} else if ($xml.find('Numeric').text() == "23098") {$('#name').html('Czech-republic');
} else if ($xml.find('Numeric').text() == "23001") {$('#name').html('Czech-republic');
} else if ($xml.find('Numeric').text() == "23003") {$('#name').html('Czech-republic');
} else if ($xml.find('Numeric').text() == "63090") {$('#name').html('Democratic-republic-of-congo');
} else if ($xml.find('Numeric').text() == "63002") {$('#name').html('Democratic-republic-of-congo');
} else if ($xml.find('Numeric').text() == "63086") {$('#name').html('Democratic-republic-of-congo');
} else if ($xml.find('Numeric').text() == "63001") {$('#name').html('Democratic-republic-of-congo');
} else if ($xml.find('Numeric').text() == "23806") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "23812") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "23801") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "23802") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "23820") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "23807") {$('#name').html('Denmark');
} else if ($xml.find('Numeric').text() == "63801") {$('#name').html('Djibouti');
} else if ($xml.find('Numeric').text() == "366020") {$('#name').html('Dominica');
} else if ($xml.find('Numeric').text() == "366110") {$('#name').html('Dominica');
} else if ($xml.find('Numeric').text() == "37001") {$('#name').html('Dominican-republic');
} else if ($xml.find('Numeric').text() == "37002") {$('#name').html('Dominican-republic');
} else if ($xml.find('Numeric').text() == "37004") {$('#name').html('Dominican-republic');
} else if ($xml.find('Numeric').text() == "37005") {$('#name').html('Dominican-republic');
} else if ($xml.find('Numeric').text() == "51403") {$('#name').html('East-timor');
} else if ($xml.find('Numeric').text() == "51401") {$('#name').html('East-timor');
} else if ($xml.find('Numeric').text() == "51402") {$('#name').html('East-timor');
} else if ($xml.find('Numeric').text() == "74001") {$('#name').html('Ecuador');
} else if ($xml.find('Numeric').text() == "74002") {$('#name').html('Ecuador');
} else if ($xml.find('Numeric').text() == "74000") {$('#name').html('Ecuador');
} else if ($xml.find('Numeric').text() == "74003") {$('#name').html('Ecuador');
} else if ($xml.find('Numeric').text() == "60203") {$('#name').html('Egypt');
} else if ($xml.find('Numeric').text() == "60201") {$('#name').html('Egypt');
} else if ($xml.find('Numeric').text() == "60202") {$('#name').html('Egypt');
} else if ($xml.find('Numeric').text() == "60204") {$('#name').html('Egypt');
} else if ($xml.find('Numeric').text() == "70601") {$('#name').html('El-salvador');
} else if ($xml.find('Numeric').text() == "70602") {$('#name').html('El-salvador');
} else if ($xml.find('Numeric').text() == "70604") {$('#name').html('El-salvador');
} else if ($xml.find('Numeric').text() == "70603") {$('#name').html('El-salvador');
} else if ($xml.find('Numeric').text() == "62703") {$('#name').html('Equatorial-guinea');
} else if ($xml.find('Numeric').text() == "62701") {$('#name').html('Equatorial-guinea');
} else if ($xml.find('Numeric').text() == "65701") {$('#name').html('Eritrea');
} else if ($xml.find('Numeric').text() == "24802") {$('#name').html('Estonia');
} else if ($xml.find('Numeric').text() == "24803") {$('#name').html('Estonia');
} else if ($xml.find('Numeric').text() == "24801") {$('#name').html('Estonia');
} else if ($xml.find('Numeric').text() == "63601") {$('#name').html('Ethiopia');
} else if ($xml.find('Numeric').text() == "28801") {$('#name').html('Faroe-islands');
} else if ($xml.find('Numeric').text() == "28802") {$('#name').html('Faroe-islands');
} else if ($xml.find('Numeric').text() == "54202") {$('#name').html('Fiji');
} else if ($xml.find('Numeric').text() == "54203") {$('#name').html('Fiji');
} else if ($xml.find('Numeric').text() == "54201") {$('#name').html('Fiji');
} else if ($xml.find('Numeric').text() == "24414") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "24403") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "24405") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "24420") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "24435") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "24433") {$('#name').html('Finland');
} else if ($xml.find('Numeric').text() == "20820") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20815") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20805") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20810") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20826") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20801") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20808") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20822") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "20810") {$('#name').html('France');
} else if ($xml.find('Numeric').text() == "54720") {$('#name').html('French-polynesia');
} else if ($xml.find('Numeric').text() == "54705") {$('#name').html('French-polynesia');
} else if ($xml.find('Numeric').text() == "54715") {$('#name').html('French-polynesia');
} else if ($xml.find('Numeric').text() == "62803") {$('#name').html('Gabon');
} else if ($xml.find('Numeric').text() == "62804") {$('#name').html('Gabon');
} else if ($xml.find('Numeric').text() == "62801") {$('#name').html('Gabon');
} else if ($xml.find('Numeric').text() == "62802") {$('#name').html('Gabon');
} else if ($xml.find('Numeric').text() == "60702") {$('#name').html('Gambia');
} else if ($xml.find('Numeric').text() == "60703") {$('#name').html('Gambia');
} else if ($xml.find('Numeric').text() == "60701") {$('#name').html('Gambia');
} else if ($xml.find('Numeric').text() == "60706") {$('#name').html('Gambia');
} else if ($xml.find('Numeric').text() == "60704") {$('#name').html('Gambia');
} else if ($xml.find('Numeric').text() == "28204") {$('#name').html('Georgia');
} else if ($xml.find('Numeric').text() == "28201") {$('#name').html('Georgia');
} else if ($xml.find('Numeric').text() == "28202") {$('#name').html('Georgia');
} else if ($xml.find('Numeric').text() == "28205") {$('#name').html('Georgia');
} else if ($xml.find('Numeric').text() == "26215") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26213") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26212") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26243") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26292") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26203") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26233") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26201") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "26202") {$('#name').html('Germany');
} else if ($xml.find('Numeric').text() == "62003") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "62010") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "62007") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "62001") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "62008") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "62002") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "26601") {$('#name').html('Gibraltar');
} else if ($xml.find('Numeric').text() == "20201") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "20214") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "20205") {$('#name').html('Ghana');
} else if ($xml.find('Numeric').text() == "20209") {$('#name').html('Greece');
} else if ($xml.find('Numeric').text() == "29002") {$('#name').html('Greenland');
} else if ($xml.find('Numeric').text() == "29001") {$('#name').html('Greenland');
} else if ($xml.find('Numeric').text() == "352030") {$('#name').html('Grenada');
} else if ($xml.find('Numeric').text() == "352110") {$('#name').html('Grenada');
} else if ($xml.find('Numeric').text() == "34020") {$('#name').html('Guadeloupe');
} else if ($xml.find('Numeric').text() == "34001") {$('#name').html('Guadeloupe');
} else if ($xml.find('Numeric').text() == "310140") {$('#name').html('Guam');
} else if ($xml.find('Numeric').text() == "310400") {$('#name').html('Guam');
} else if ($xml.find('Numeric').text() == "310032") {$('#name').html('Guam');
} else if ($xml.find('Numeric').text() == "310370") {$('#name').html('Guam');
} else if ($xml.find('Numeric').text() == "70401") {$('#name').html('Guatemala');
} else if ($xml.find('Numeric').text() == "70403") {$('#name').html('Guatemala');
} else if ($xml.find('Numeric').text() == "70402") {$('#name').html('Guatemala');
} else if ($xml.find('Numeric').text() == "73801") {$('#name').html('Guiana');
} else if ($xml.find('Numeric').text() == "738002") {$('#name').html('Guiana');
} else if ($xml.find('Numeric').text() == "61105") {$('#name').html('Guinea');
} else if ($xml.find('Numeric').text() == "61104") {$('#name').html('Guinea');
} else if ($xml.find('Numeric').text() == "61101") {$('#name').html('Guinea');
} else if ($xml.find('Numeric').text() == "61103") {$('#name').html('Guinea');
} else if ($xml.find('Numeric').text() == "63202") {$('#name').html('Guinea-bissau');
} else if ($xml.find('Numeric').text() == "63203") {$('#name').html('Guinea-bissau');
} else if ($xml.find('Numeric').text() == "37202") {$('#name').html('Haiti');
} else if ($xml.find('Numeric').text() == "37203") {$('#name').html('Haiti');
} else if ($xml.find('Numeric').text() == "708001") {$('#name').html('Honduras');
} else if ($xml.find('Numeric').text() == "708040") {$('#name').html('Honduras');
} else if ($xml.find('Numeric').text() == "708030") {$('#name').html('Honduras');
} else if ($xml.find('Numeric').text() == "708002") {$('#name').html('Honduras');
} else if ($xml.find('Numeric').text() == "45403") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45412") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45407") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45411") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45401") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45400") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45414") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45416") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "45415") {$('#name').html('Hong-kong');
} else if ($xml.find('Numeric').text() == "21602") {$('#name').html('Hungary');
} else if ($xml.find('Numeric').text() == "21630") {$('#name').html('Hungary');
} else if ($xml.find('Numeric').text() == "21601") {$('#name').html('Hungary');
} else if ($xml.find('Numeric').text() == "21670") {$('#name').html('Hungary');
} else if ($xml.find('Numeric').text() == "27411") {$('#name').html('Iceland');
} else if ($xml.find('Numeric').text() == "27408") {$('#name').html('Iceland');
} else if ($xml.find('Numeric').text() == "27401") {$('#name').html('Iceland');
} else if ($xml.find('Numeric').text() == "27402") {$('#name').html('Iceland');
} else if ($xml.find('Numeric').text() == "40417") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40406") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40421") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40434") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40404") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "405840") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40409") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "405025") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "40401") {$('#name').html('India');
} else if ($xml.find('Numeric').text() == "51089") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51008") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51088") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51001") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51000") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51009") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51007") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51010") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "51011") {$('#name').html('Indonesia');
} else if ($xml.find('Numeric').text() == "43211") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "43212") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "43235") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "43220") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "43232") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "43270") {$('#name').html('Iran');
} else if ($xml.find('Numeric').text() == "41800") {$('#name').html('Iraq');
} else if ($xml.find('Numeric').text() == "41840") {$('#name').html('Iraq');
} else if ($xml.find('Numeric').text() == "41845") {$('#name').html('Iraq');
} else if ($xml.find('Numeric').text() == "41892") {$('#name').html('Iraq');
} else if ($xml.find('Numeric').text() == "41820") {$('#name').html('Iraq');
} else if ($xml.find('Numeric').text() == "27202") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27203") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27213") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27203") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27202") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27211") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "27201") {$('#name').html('Ireland');
} else if ($xml.find('Numeric').text() == "42509") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42502") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42508") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42507") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42501") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42503") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "42516") {$('#name').html('Israel');
} else if ($xml.find('Numeric').text() == "22237") {$('#name').html('Italy');
} else if ($xml.find('Numeric').text() == "22250") {$('#name').html('Italy');
} else if ($xml.find('Numeric').text() == "22201") {$('#name').html('Italy');
} else if ($xml.find('Numeric').text() == "22206") {$('#name').html('Italy');
} else if ($xml.find('Numeric').text() == "22288") {$('#name').html('Italy');
} else if ($xml.find('Numeric').text() == "61202") {$('#name').html('Ivory-coast');
} else if ($xml.find('Numeric').text() == "61205") {$('#name').html('Ivory-coast');
} else if ($xml.find('Numeric').text() == "61203") {$('#name').html('Ivory-coast');
} else if ($xml.find('Numeric').text() == "338040") {$('#name').html('Jamaica');
} else if ($xml.find('Numeric').text() == "338050") {$('#name').html('Jamaica');
} else if ($xml.find('Numeric').text() == "338020") {$('#name').html('Jamaica');
} else if ($xml.find('Numeric').text() == "44000") {$('#name').html('Japan');
} else if ($xml.find('Numeric').text() == "44050") {$('#name').html('Japan');
} else if ($xml.find('Numeric').text() == "44010") {$('#name').html('Japan');
} else if ($xml.find('Numeric').text() == "44020") {$('#name').html('Japan');
} else if ($xml.find('Numeric').text() == "41677") {$('#name').html('Jordan');
} else if ($xml.find('Numeric').text() == "41603") {$('#name').html('Jordan');
} else if ($xml.find('Numeric').text() == "41601") {$('#name').html('Jordan');
} else if ($xml.find('Numeric').text() == "40107") {$('#name').html('Kazakhstan');
} else if ($xml.find('Numeric').text() == "40101") {$('#name').html('Kazakhstan');
} else if ($xml.find('Numeric').text() == "40108") {$('#name').html('Kazakhstan');
} else if ($xml.find('Numeric').text() == "40102") {$('#name').html('Kazakhstan');
} else if ($xml.find('Numeric').text() == "40177") {$('#name').html('Kazakhstan');
} else if ($xml.find('Numeric').text() == "63903") {$('#name').html('Kenya');
} else if ($xml.find('Numeric').text() == "63910") {$('#name').html('Kenya');
} else if ($xml.find('Numeric').text() == "63901") {$('#name').html('Kenya');
} else if ($xml.find('Numeric').text() == "63907") {$('#name').html('Kenya');
} else if ($xml.find('Numeric').text() == "54501") {$('#name').html('Kiribati');
} else if ($xml.find('Numeric').text() == "41903") {$('#name').html('Kuwait');
} else if ($xml.find('Numeric').text() == "41904") {$('#name').html('Kuwait');
} else if ($xml.find('Numeric').text() == "41902") {$('#name').html('Kuwait');
} else if ($xml.find('Numeric').text() == "43701") {$('#name').html('Kyrgyzstan');
} else if ($xml.find('Numeric').text() == "43705") {$('#name').html('Kyrgyzstan');
} else if ($xml.find('Numeric').text() == "43709") {$('#name').html('Kyrgyzstan');
} else if ($xml.find('Numeric').text() == "45708") {$('#name').html('Laos');
} else if ($xml.find('Numeric').text() == "45702") {$('#name').html('Laos');
} else if ($xml.find('Numeric').text() == "45701") {$('#name').html('Laos');
} else if ($xml.find('Numeric').text() == "45703") {$('#name').html('Laos');
} else if ($xml.find('Numeric').text() == "24705") {$('#name').html('Latvia');
} else if ($xml.find('Numeric').text() == "24701") {$('#name').html('Latvia');
} else if ($xml.find('Numeric').text() == "24706") {$('#name').html('Latvia');
} else if ($xml.find('Numeric').text() == "24702") {$('#name').html('Latvia');
} else if ($xml.find('Numeric').text() == "24703") {$('#name').html('Latvia');
} else if ($xml.find('Numeric').text() == "41501") {$('#name').html('Lebanon');
} else if ($xml.find('Numeric').text() == "41505") {$('#name').html('Lebanon');
} else if ($xml.find('Numeric').text() == "41503") {$('#name').html('Lebanon');
} else if ($xml.find('Numeric').text() == "65102") {$('#name').html('Lesotho');
} else if ($xml.find('Numeric').text() == "65101") {$('#name').html('Lesotho');
} else if ($xml.find('Numeric').text() == "61820") {$('#name').html('Liberia');
} else if ($xml.find('Numeric').text() == "61801") {$('#name').html('Liberia');
} else if ($xml.find('Numeric').text() == "61804") {$('#name').html('Liberia');
} else if ($xml.find('Numeric').text() == "61807") {$('#name').html('Liberia');
} else if ($xml.find('Numeric').text() == "60601") {$('#name').html('Libya');
} else if ($xml.find('Numeric').text() == "60602") {$('#name').html('Libya');
} else if ($xml.find('Numeric').text() == "60606") {$('#name').html('Libya');
} else if ($xml.find('Numeric').text() == "60600") {$('#name').html('Libya');
} else if ($xml.find('Numeric').text() == "29502") {$('#name').html('Liechtenstein');
} else if ($xml.find('Numeric').text() == "29506") {$('#name').html('Liechtenstein');
} else if ($xml.find('Numeric').text() == "29505") {$('#name').html('Liechtenstein');
} else if ($xml.find('Numeric').text() == "29501") {$('#name').html('Liechtenstein');
} else if ($xml.find('Numeric').text() == "24602") {$('#name').html('Lithuania');
} else if ($xml.find('Numeric').text() == "24606") {$('#name').html('Lithuania');
} else if ($xml.find('Numeric').text() == "24603") {$('#name').html('Lithuania');
} else if ($xml.find('Numeric').text() == "24601") {$('#name').html('Lithuania');
} else if ($xml.find('Numeric').text() == "27099") {$('#name').html('Luxembourg');
} else if ($xml.find('Numeric').text() == "27001") {$('#name').html('Luxembourg');
} else if ($xml.find('Numeric').text() == "27077") {$('#name').html('Luxembourg');
} else if ($xml.find('Numeric').text() == "45503") {$('#name').html('Macao');
} else if ($xml.find('Numeric').text() == "45507") {$('#name').html('Macao');
} else if ($xml.find('Numeric').text() == "45504") {$('#name').html('Macao');
} else if ($xml.find('Numeric').text() == "45506") {$('#name').html('Macao');
} else if ($xml.find('Numeric').text() == "29404") {$('#name').html('Macedonia');
} else if ($xml.find('Numeric').text() == "29401") {$('#name').html('Macedonia');
} else if ($xml.find('Numeric').text() == "29402") {$('#name').html('Macedonia');
} else if ($xml.find('Numeric').text() == "64601") {$('#name').html('Madagascar');
} else if ($xml.find('Numeric').text() == "64602") {$('#name').html('Madagascar');
} else if ($xml.find('Numeric').text() == "64604") {$('#name').html('Madagascar');
} else if ($xml.find('Numeric').text() == "65002") {$('#name').html('Malawi');
} else if ($xml.find('Numeric').text() == "65010") {$('#name').html('Malawi');
} else if ($xml.find('Numeric').text() == "65001") {$('#name').html('Malawi');
} else if ($xml.find('Numeric').text() == "50213") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "50216") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "50220") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "50212") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "502153") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "50201") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "502150") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "50218") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "502152") {$('#name').html('Malaysia');
} else if ($xml.find('Numeric').text() == "47201") {$('#name').html('Maldives');
} else if ($xml.find('Numeric').text() == "47202") {$('#name').html('Maldives');
} else if ($xml.find('Numeric').text() == "61002") {$('#name').html('Mali');
} else if ($xml.find('Numeric').text() == "61001") {$('#name').html('Mali');
} else if ($xml.find('Numeric').text() == "27821") {$('#name').html('Malta');
} else if ($xml.find('Numeric').text() == "27877") {$('#name').html('Malta');
} else if ($xml.find('Numeric').text() == "27801") {$('#name').html('Malta');
} else if ($xml.find('Numeric').text() == "60902") {$('#name').html('Mauretania');
} else if ($xml.find('Numeric').text() == "60901") {$('#name').html('Mauretania');
} else if ($xml.find('Numeric').text() == "60910") {$('#name').html('Mauretania');
} else if ($xml.find('Numeric').text() == "61703") {$('#name').html('Mauritius');
} else if ($xml.find('Numeric').text() == "61710") {$('#name').html('Mauritius');
} else if ($xml.find('Numeric').text() == "61701") {$('#name').html('Mauritius');
} else if ($xml.find('Numeric').text() == "334140") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "334010") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "334030") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "334020") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "334150") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "334040") {$('#name').html('Mexico');
} else if ($xml.find('Numeric').text() == "55001") {$('#name').html('Micronesia');
} else if ($xml.find('Numeric').text() == "25900") {$('#name').html('Moldova');
} else if ($xml.find('Numeric').text() == "25902") {$('#name').html('Moldova');
} else if ($xml.find('Numeric').text() == "25901") {$('#name').html('Moldova');
} else if ($xml.find('Numeric').text() == "25903") {$('#name').html('Moldova');
} else if ($xml.find('Numeric').text() == "21210") {$('#name').html('Monaco');
} else if ($xml.find('Numeric').text() == "42898") {$('#name').html('Mongolia');
} else if ($xml.find('Numeric').text() == "42899") {$('#name').html('Mongolia');
} else if ($xml.find('Numeric').text() == "42891") {$('#name').html('Mongolia');
} else if ($xml.find('Numeric').text() == "42888") {$('#name').html('Mongolia');
} else if ($xml.find('Numeric').text() == "29703") {$('#name').html('Montenegro');
} else if ($xml.find('Numeric').text() == "29702") {$('#name').html('Montenegro');
} else if ($xml.find('Numeric').text() == "29701") {$('#name').html('Montenegro');
} else if ($xml.find('Numeric').text() == "60402") {$('#name').html('Morocco');
} else if ($xml.find('Numeric').text() == "60406") {$('#name').html('Morocco');
} else if ($xml.find('Numeric').text() == "60400") {$('#name').html('Morocco');
} else if ($xml.find('Numeric').text() == "64301") {$('#name').html('Mozambique');
} else if ($xml.find('Numeric').text() == "64303") {$('#name').html('Mozambique');
} else if ($xml.find('Numeric').text() == "64304") {$('#name').html('Mozambique');
} else if ($xml.find('Numeric').text() == "41400") {$('#name').html('Myanmar');
} else if ($xml.find('Numeric').text() == "41409") {$('#name').html('Myanmar');
} else if ($xml.find('Numeric').text() == "41405") {$('#name').html('Myanmar');
} else if ($xml.find('Numeric').text() == "41406") {$('#name').html('Myanmar');
} else if ($xml.find('Numeric').text() == "64901") {$('#name').html('Namibia');
} else if ($xml.find('Numeric').text() == "64903") {$('#name').html('Namibia');
} else if ($xml.find('Numeric').text() == "53602") {$('#name').html('Nauru');
} else if ($xml.find('Numeric').text() == "42902") {$('#name').html('Nepal');
} else if ($xml.find('Numeric').text() == "42901") {$('#name').html('Nepal');
} else if ($xml.find('Numeric').text() == "42904") {$('#name').html('Nepal');
} else if ($xml.find('Numeric').text() == "42903") {$('#name').html('Nepal');
} else if ($xml.find('Numeric').text() == "20408") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20409") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20416") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20402") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20412") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20406") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20404") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "20415") {$('#name').html('Netherlands');
} else if ($xml.find('Numeric').text() == "36268") {$('#name').html('Netherlands-antilles');
} else if ($xml.find('Numeric').text() == "36251") {$('#name').html('Netherlands-antilles');
} else if ($xml.find('Numeric').text() == "36259") {$('#name').html('Netherlands-antilles');
} else if ($xml.find('Numeric').text() == "54601") {$('#name').html('New-caledonia');
} else if ($xml.find('Numeric').text() == "53024") {$('#name').html('New-zealand');
} else if ($xml.find('Numeric').text() == "53005") {$('#name').html('New-zealand');
} else if ($xml.find('Numeric').text() == "53001") {$('#name').html('New-zealand');
} else if ($xml.find('Numeric').text() == "71021") {$('#name').html('Nicaragua');
} else if ($xml.find('Numeric').text() == "71030") {$('#name').html('Nicaragua');
} else if ($xml.find('Numeric').text() == "61402") {$('#name').html('Niger');
} else if ($xml.find('Numeric').text() == "61403") {$('#name').html('Niger');
} else if ($xml.find('Numeric').text() == "61404") {$('#name').html('Niger');
} else if ($xml.find('Numeric').text() == "61401") {$('#name').html('Niger');
} else if ($xml.find('Numeric').text() == "62160") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62120") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62150") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62122") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62130") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62140") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62127") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62124") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "62126") {$('#name').html('Nigeria');
} else if ($xml.find('Numeric').text() == "55501") {$('#name').html('Niue');
} else if ($xml.find('Numeric').text() == "46705") {$('#name').html('North-korea');
} else if ($xml.find('Numeric').text() == "24206") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "24223") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "24208") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "24204") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "24201") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "24202") {$('#name').html('Norway');
} else if ($xml.find('Numeric').text() == "42202") {$('#name').html('Oman');
} else if ($xml.find('Numeric').text() == "42203") {$('#name').html('Oman');
} else if ($xml.find('Numeric').text() == "42204") {$('#name').html('Oman');
} else if ($xml.find('Numeric').text() == "41002") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "41001") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "41005") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "41006") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "41003") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "41004") {$('#name').html('Pakistan');
} else if ($xml.find('Numeric').text() == "55101") {$('#name').html('Palau');
} else if ($xml.find('Numeric').text() == "42505") {$('#name').html('Palestine');
} else if ($xml.find('Numeric').text() == "42506") {$('#name').html('Palestine');
} else if ($xml.find('Numeric').text() == "71403") {$('#name').html('Panama');
} else if ($xml.find('Numeric').text() == "71404") {$('#name').html('Panama');
} else if ($xml.find('Numeric').text() == "71401") {$('#name').html('Panama');
} else if ($xml.find('Numeric').text() == "71402") {$('#name').html('Panama');
} else if ($xml.find('Numeric').text() == "53701") {$('#name').html('Papua-new-guinea');
} else if ($xml.find('Numeric').text() == "53703") {$('#name').html('Papua-new-guinea');
} else if ($xml.find('Numeric').text() == "53702") {$('#name').html('Papua-new-guinea');
} else if ($xml.find('Numeric').text() == "74402") {$('#name').html('Paraguay');
} else if ($xml.find('Numeric').text() == "74406") {$('#name').html('Paraguay');
} else if ($xml.find('Numeric').text() == "74405") {$('#name').html('Paraguay');
} else if ($xml.find('Numeric').text() == "74404") {$('#name').html('Paraguay');
} else if ($xml.find('Numeric').text() == "74401") {$('#name').html('Paraguay');
} else if ($xml.find('Numeric').text() == "71615") {$('#name').html('Peru');
} else if ($xml.find('Numeric').text() == "71610") {$('#name').html('Peru');
} else if ($xml.find('Numeric').text() == "71607") {$('#name').html('Peru');
} else if ($xml.find('Numeric').text() == "71606") {$('#name').html('Peru');
} else if ($xml.find('Numeric').text() == "51502") {$('#name').html('Philippines');
} else if ($xml.find('Numeric').text() == "51503") {$('#name').html('Philippines');
} else if ($xml.find('Numeric').text() == "51505") {$('#name').html('Philippines');
} else if ($xml.find('Numeric').text() == "51566") {$('#name').html('Philippines');
} else if ($xml.find('Numeric').text() == "26004") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26012") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26015") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26009") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26011") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26003") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26006") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26001") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26013") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26002") {$('#name').html('Poland');
} else if ($xml.find('Numeric').text() == "26804") {$('#name').html('Portugal');
} else if ($xml.find('Numeric').text() == "26802") {$('#name').html('Portugal');
} else if ($xml.find('Numeric').text() == "26803") {$('#name').html('Portugal');
} else if ($xml.find('Numeric').text() == "26801") {$('#name').html('Portugal');
} else if ($xml.find('Numeric').text() == "330110") {$('#name').html('Puerto-rico');
} else if ($xml.find('Numeric').text() == "330000") {$('#name').html('Puerto-rico');
} else if ($xml.find('Numeric').text() == "42701") {$('#name').html('Qatar');
} else if ($xml.find('Numeric').text() == "42702") {$('#name').html('Qatar');
} else if ($xml.find('Numeric').text() == "62901") {$('#name').html('Republic-of-congo');
} else if ($xml.find('Numeric').text() == "62910") {$('#name').html('Republic-of-congo');
} else if ($xml.find('Numeric').text() == "62907") {$('#name').html('Republic-of-congo');
} else if ($xml.find('Numeric').text() == "64702") {$('#name').html('Reunion');
} else if ($xml.find('Numeric').text() == "64700") {$('#name').html('Reunion');
} else if ($xml.find('Numeric').text() == "64710") {$('#name').html('Reunion');
} else if ($xml.find('Numeric').text() == "22605") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "22615") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "22616") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "22610") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "22603") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "22601") {$('#name').html('Romania');
} else if ($xml.find('Numeric').text() == "25028") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25002") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25035") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25001") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25039") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25006") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25054") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25020") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25008") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "25011") {$('#name').html('Russia');
} else if ($xml.find('Numeric').text() == "63514") {$('#name').html('Rwanda');
} else if ($xml.find('Numeric').text() == "63510") {$('#name').html('Rwanda');
} else if ($xml.find('Numeric').text() == "63513") {$('#name').html('Rwanda');
} else if ($xml.find('Numeric').text() == "356050") {$('#name').html('Saint-kitts-and-nevis');
} else if ($xml.find('Numeric').text() == "356110") {$('#name').html('Saint-kitts-and-nevis');
} else if ($xml.find('Numeric').text() == "358050") {$('#name').html('Saint-lucia');
} else if ($xml.find('Numeric').text() == "358110") {$('#name').html('Saint-lucia');
} else if ($xml.find('Numeric').text() == "360050") {$('#name').html('Saint-vincent-and-the-grenadines');
} else if ($xml.find('Numeric').text() == "360110") {$('#name').html('Saint-vincent-and-the-grenadines');
} else if ($xml.find('Numeric').text() == "30801") {$('#name').html('Saint-pierre-and-miquelon');
} else if ($xml.find('Numeric').text() == "54927") {$('#name').html('Samoa');
} else if ($xml.find('Numeric').text() == "54900") {$('#name').html('Samoa');
} else if ($xml.find('Numeric').text() == "29201") {$('#name').html('San-marino');
} else if ($xml.find('Numeric').text() == "62601") {$('#name').html('Sao-tome-and-principe');
} else if ($xml.find('Numeric').text() == "62602") {$('#name').html('Sao-tome-and-principe');
} else if ($xml.find('Numeric').text() == "42003") {$('#name').html('Kingdom Saudi Arabia');
} else if ($xml.find('Numeric').text() == "42001") {$('#name').html('Kingdom Saudi Arabia');
} else if ($xml.find('Numeric').text() == "42005") {$('#name').html('Kingdom Saudi Arabia');
} else if ($xml.find('Numeric').text() == "42004") {$('#name').html('Kingdom Saudi Arabia');
} else if ($xml.find('Numeric').text() == "60803") {$('#name').html('Senegal');
} else if ($xml.find('Numeric').text() == "60801") {$('#name').html('Senegal');
} else if ($xml.find('Numeric').text() == "60802") {$('#name').html('Senegal');
} else if ($xml.find('Numeric').text() == "22011") {$('#name').html('Serbia');
} else if ($xml.find('Numeric').text() == "22003") {$('#name').html('Serbia');
} else if ($xml.find('Numeric').text() == "22007") {$('#name').html('Serbia');
} else if ($xml.find('Numeric').text() == "22001") {$('#name').html('Serbia');
} else if ($xml.find('Numeric').text() == "22005") {$('#name').html('Serbia');
} else if ($xml.find('Numeric').text() == "63310") {$('#name').html('Seychelles');
} else if ($xml.find('Numeric').text() == "63301") {$('#name').html('Seychelles');
} else if ($xml.find('Numeric').text() == "61902") {$('#name').html('Sierra-leone');
} else if ($xml.find('Numeric').text() == "61901") {$('#name').html('Sierra-leone');
} else if ($xml.find('Numeric').text() == "61906") {$('#name').html('Sierra-leone');
} else if ($xml.find('Numeric').text() == "52503") {$('#name').html('Singapore');
} else if ($xml.find('Numeric').text() == "52501") {$('#name').html('Singapore');
} else if ($xml.find('Numeric').text() == "52505") {$('#name').html('Singapore');
} else if ($xml.find('Numeric').text() == "23103") {$('#name').html('Slovakia');
} else if ($xml.find('Numeric').text() == "23106") {$('#name').html('Slovakia');
} else if ($xml.find('Numeric').text() == "23101") {$('#name').html('Slovakia');
} else if ($xml.find('Numeric').text() == "23102") {$('#name').html('Slovakia');
} else if ($xml.find('Numeric').text() == "29340") {$('#name').html('Slovenia');
} else if ($xml.find('Numeric').text() == "29364") {$('#name').html('Slovenia');
} else if ($xml.find('Numeric').text() == "29341") {$('#name').html('Slovenia');
} else if ($xml.find('Numeric').text() == "29370") {$('#name').html('Slovenia');
} else if ($xml.find('Numeric').text() == "54002") {$('#name').html('Solomon-islands');
} else if ($xml.find('Numeric').text() == "54001") {$('#name').html('Solomon-islands');
} else if ($xml.find('Numeric').text() == "63730") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63750") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63710") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63704") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63720") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63771") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "63701") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "65507") {$('#name').html('South-africa');
} else if ($xml.find('Numeric').text() == "65510") {$('#name').html('South-africa');
} else if ($xml.find('Numeric').text() == "65513") {$('#name').html('South-africa');
} else if ($xml.find('Numeric').text() == "65502") {$('#name').html('South-africa');
} else if ($xml.find('Numeric').text() == "65501") {$('#name').html('South-africa');
} else if ($xml.find('Numeric').text() == "45002") {$('#name').html('South-korea');
} else if ($xml.find('Numeric').text() == "45006") {$('#name').html('South-korea');
} else if ($xml.find('Numeric').text() == "45005") {$('#name').html('South-korea');
} else if ($xml.find('Numeric').text() == "21423") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21422") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21408") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21425") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21407") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21403") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21419") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21416") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21401") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "21404") {$('#name').html('Spain');
} else if ($xml.find('Numeric').text() == "41305") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41302") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41303") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41308") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41304") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41301") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "41312") {$('#name').html('Sri-lanka');
} else if ($xml.find('Numeric').text() == "63405") {$('#name').html('Sudan');
} else if ($xml.find('Numeric').text() == "63402") {$('#name').html('Sudan');
} else if ($xml.find('Numeric').text() == "63407") {$('#name').html('Sudan');
} else if ($xml.find('Numeric').text() == "63401") {$('#name').html('Sudan');
} else if ($xml.find('Numeric').text() == "75603") {$('#name').html('Suriname');
} else if ($xml.find('Numeric').text() == "75605") {$('#name').html('Suriname');
} else if ($xml.find('Numeric').text() == "56310") {$('#name').html('Swaziland');
} else if ($xml.find('Numeric').text() == "24002") {$('#name').html('Sweden');
} else if ($xml.find('Numeric').text() == "24017") {$('#name').html('Sweden');
} else if ($xml.find('Numeric').text() == "24007") {$('#name').html('Sweden');
} else if ($xml.find('Numeric').text() == "24006") {$('#name').html('Sweden');
} else if ($xml.find('Numeric').text() == "24001") {$('#name').html('Sweden');
} else if ($xml.find('Numeric').text() == "22805") {$('#name').html('Switzerland');
} else if ($xml.find('Numeric').text() == "22803") {$('#name').html('Switzerland');
} else if ($xml.find('Numeric').text() == "22802") {$('#name').html('Switzerland');
} else if ($xml.find('Numeric').text() == "22801") {$('#name').html('Switzerland');
} else if ($xml.find('Numeric').text() == "41702") {$('#name').html('Syria');
} else if ($xml.find('Numeric').text() == "41701") {$('#name').html('Syria');
} else if ($xml.find('Numeric').text() == "46605") {$('#name').html('Taiwan');
} else if ($xml.find('Numeric').text() == "46611") {$('#name').html('Taiwan');
} else if ($xml.find('Numeric').text() == "46601") {$('#name').html('Taiwan');
} else if ($xml.find('Numeric').text() == "46689") {$('#name').html('Taiwan');
} else if ($xml.find('Numeric').text() == "46697") {$('#name').html('Taiwan');
} else if ($xml.find('Numeric').text() == "43604") {$('#name').html('Tajikistan');
} else if ($xml.find('Numeric').text() == "43605") {$('#name').html('Tajikistan');
} else if ($xml.find('Numeric').text() == "43603") {$('#name').html('Tajikistan');
} else if ($xml.find('Numeric').text() == "43601") {$('#name').html('Tajikistan');
} else if ($xml.find('Numeric').text() == "64005") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64009") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64011") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64002") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64007") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64004") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "64003") {$('#name').html('Tanzania');
} else if ($xml.find('Numeric').text() == "52001") {$('#name').html('Thailand');
} else if ($xml.find('Numeric').text() == "52000") {$('#name').html('Thailand');
} else if ($xml.find('Numeric').text() == "52018") {$('#name').html('Thailand');
} else if ($xml.find('Numeric').text() == "52015") {$('#name').html('Thailand');
} else if ($xml.find('Numeric').text() == "52099") {$('#name').html('Thailand');
} else if ($xml.find('Numeric').text() == "61503") {$('#name').html('Togo');
} else if ($xml.find('Numeric').text() == "61501") {$('#name').html('Togo');
} else if ($xml.find('Numeric').text() == "53988") {$('#name').html('Tonga');
} else if ($xml.find('Numeric').text() == "53901") {$('#name').html('Tonga');
} else if ($xml.find('Numeric').text() == "37412") {$('#name').html('Trinidad-and-tobago');
} else if ($xml.find('Numeric').text() == "374130") {$('#name').html('Trinidad-and-tobago');
} else if ($xml.find('Numeric').text() == "60506") {$('#name').html('Tunisia');
} else if ($xml.find('Numeric').text() == "60503") {$('#name').html('Tunisia');
} else if ($xml.find('Numeric').text() == "60501") {$('#name').html('Tunisia');
} else if ($xml.find('Numeric').text() == "60502") {$('#name').html('Tunisia');
} else if ($xml.find('Numeric').text() == "28603") {$('#name').html('Turkey');
} else if ($xml.find('Numeric').text() == "28601") {$('#name').html('Turkey');
} else if ($xml.find('Numeric').text() == "28602") {$('#name').html('Turkey');
} else if ($xml.find('Numeric').text() == "43801") {$('#name').html('Turkmenistan');
} else if ($xml.find('Numeric').text() == "43802") {$('#name').html('Turkmenistan');
} else if ($xml.find('Numeric').text() == "64114") {$('#name').html('Uganda');
} else if ($xml.find('Numeric').text() == "64101") {$('#name').html('Uganda');
} else if ($xml.find('Numeric').text() == "64110") {$('#name').html('Uganda');
} else if ($xml.find('Numeric').text() == "64133") {$('#name').html('Uganda');
} else if ($xml.find('Numeric').text() == "64111") {$('#name').html('Uganda');
} else if ($xml.find('Numeric').text() == "25504") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "25503") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "25506") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "25521") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "25507") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "25501") {$('#name').html('Ukraine');
} else if ($xml.find('Numeric').text() == "42403") {$('#name').html('United Arab Emirates');
} else if ($xml.find('Numeric').text() == "42402") {$('#name').html('United Arab Emirates');
} else if ($xml.find('Numeric').text() == "23420") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23400") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23418") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23430") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23454") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23458") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23402") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23433") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23436") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23430") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "234100") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23438") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "23407") {$('#name').html('United-kingdom');
} else if ($xml.find('Numeric').text() == "310016") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311440") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311870") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311230") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310130") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310320") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311010") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311040") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310016") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310970") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311030") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310530") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310340") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311960") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311660") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "311080") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310100") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310120") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310999") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310160") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310260") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310999") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310020") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310066") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310004") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310450") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310053") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "310180") {$('#name').html('United-states');
} else if ($xml.find('Numeric').text() == "74800") {$('#name').html('Uruguay');
} else if ($xml.find('Numeric').text() == "74810") {$('#name').html('Uruguay');
} else if ($xml.find('Numeric').text() == "74807") {$('#name').html('Uruguay');
} else if ($xml.find('Numeric').text() == "43404") {$('#name').html('Uzbekistan');
} else if ($xml.find('Numeric').text() == "43406") {$('#name').html('Uzbekistan');
} else if ($xml.find('Numeric').text() == "43405") {$('#name').html('Uzbekistan');
} else if ($xml.find('Numeric').text() == "43407") {$('#name').html('Uzbekistan');
} else if ($xml.find('Numeric').text() == "43408") {$('#name').html('Uzbekistan');
} else if ($xml.find('Numeric').text() == "54105") {$('#name').html('Vanuatu');
} else if ($xml.find('Numeric').text() == "54101") {$('#name').html('Vanuatu');
} else if ($xml.find('Numeric').text() == "54107") {$('#name').html('Vanuatu');
} else if ($xml.find('Numeric').text() == "73401") {$('#name').html('Venezuela');
} else if ($xml.find('Numeric').text() == "73406") {$('#name').html('Venezuela');
} else if ($xml.find('Numeric').text() == "73404") {$('#name').html('Venezuela');
} else if ($xml.find('Numeric').text() == "45207") {$('#name').html('Vietnam');
} else if ($xml.find('Numeric').text() == "45201") {$('#name').html('Vietnam');
} else if ($xml.find('Numeric').text() == "45205") {$('#name').html('Vietnam');
} else if ($xml.find('Numeric').text() == "45204") {$('#name').html('Vietnam');
} else if ($xml.find('Numeric').text() == "45202") {$('#name').html('Vietnam');
} else if ($xml.find('Numeric').text() == "42102") {$('#name').html('Yemen');
} else if ($xml.find('Numeric').text() == "42101") {$('#name').html('Yemen');
} else if ($xml.find('Numeric').text() == "42103") {$('#name').html('Yemen');
} else if ($xml.find('Numeric').text() == "64501") {$('#name').html('Zambia');
} else if ($xml.find('Numeric').text() == "64502") {$('#name').html('Zambia');
} else if ($xml.find('Numeric').text() == "64503") {$('#name').html('Zambia');
} else if ($xml.find('Numeric').text() == "64804") {$('#name').html('Zimbabwe');
} else if ($xml.find('Numeric').text() == "64801") {$('#name').html('Zimbabwe');
} else if ($xml.find('Numeric').text() == "64803") {$('#name').html('Zimbabwe');
} else if ($xml.find('Numeric').text() == "63782") {$('#name').html('Somalia');
} else if ($xml.find('Numeric').text() == "42105") {$('#name').html('Yemen');
}}})}

function DeviceBoot() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/boot_time', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
if ($xml.find('boot_time').text() == "") {
$("#bootTime").css('display','none');
} else {
$("#bootTime").css('display', '');
$('#bootTime').html(' ( ' + $xml.find('boot_time').text().replace('[', '').replace(']:[', ':').replace(']:[', ':').replace(']', '') + ' ) ');
}}})}

function Signl() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/signal', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
for (signal = data, vars = ["nrrsrp"], i = 0; i < vars.length; i++) window[vars[i]] = extractXML(vars[i], data), nrdefined = "undefined" != typeof nrrsrp, $(".e5").toggle(nrdefined);
band = $xml.find('band').text();
mode = $xml.find('mode').text();
$('#moden').html(mode);
cid = $xml.find('cell_id').text();
var hex = Number(cid).toString(16);

if ($xml.find('cell_id').text() == "") {
$(".cell,.enb").css('display','none');
} else {
$(".cell,.enb").css('display', '');
$('#cell_id').html(cid);
}
if ($xml.find('band').text() != '' && $xml.find('band').text() != '0') {
$('#bandB').html('B' + $xml.find('band').text());
$(".bband").css('display', '');
} else {
$(".bband").css('display', 'none');
}
if ($xml.find('sc,pci').text() == "") {
$(".pci").css('display', 'none');
} else {
$(".pci").css('display', '');
$('#pci').html(($xml.find('pci').text() == "" ? $xml.find('sc').text() : $xml.find('pci').text()));
}
if ($xml.find('tac,rac,lac').text() == "") {
$(".lac").css('display', 'none');
} else {
$(".lac").css('display', '');
}

if (mode == '') {
$(".mod").css('background', 'red');
$('#modee').html('No Service');
}

if (mode == '0') {
$('#enbid').html(cid);
$(".mod").css('background', 'green');
$('#modee').html('2G');
$('#tlac').html('LAC');
$(".bn3").css('display','');
$(".2G,.allow").css('display','none');
$('#lac').html($xml.find('lac').text());
var arf2g = $xml.find('arfcn').text();
if ($xml.find('arfcn').text() == "") {
$(".arfc2g").css('display','none');
} else {
$(".arfc2g").css('display','');
$('#earf2g').html(arf2g);
}
}

if (mode == '2') {
var hex2 = hex.substring(0, hex.length - 4);
var enbid = parseInt(hex2, 16);
var hex3 = hex.substring(hex.length - 4, hex.length);
var shortcid = parseInt(hex3, 16);
if (isLongID == true) {
$('#enbid').html(parseInt(hex, 16));
} else {
$('#enbid').html(enbid + '/' + shortcid);
}
$(".mod").css('background', 'green');
$('#modee').html('3G');
$('#tlac').html('RAC');
$(".2G,.e3,.bn3").css('display','');
$(".allow,.arfc4g,.e4").css('display','none');
$('#lac').html($xml.find('rac').text());
var arf3g = $xml.find('wdlfreq').text();
if ($xml.find('wdlfreq').text() == "") {
$(".arfc3g").css('display','none');
} else {
$(".arfc3g").css('display','');
$('#earf3g').html(arf3g);
}
}

if (mode == '7') {
var hex2 = hex.substring(0, hex.length - 2);
var enbid = parseInt(hex2, 16);
var hex3 = hex.substring(hex.length - 2, hex.length);
var shortcid = parseInt(hex3, 16);
if (isLongID == true) {
$('#enbid').html(parseInt(hex, 16));
} else {
$('#enbid').html(enbid + '/' + shortcid);
}
$(".mod").css('background', 'green');
$('#modee').html('4G');
$('#tlac').html('TAC');
$(".2G,.allow,.e4").css('display','');
$(".e3,.bn3,.arfc3g").css('display','none');
$('#lac').html($xml.find('tac').text());
var arf4g = $xml.find('earfcn').text().replace('DL:','DL: ').replace('UL:',' UL: ');
if ($xml.find('earfcn').text() == "") {
$(".arfc4g").css('display', 'none');
} else if ($xml.find('earfcn').text() == "DL:0 UL:0") {
$(".arfc4g").css('display', 'none');
} else if ($xml.find('earfcn').text() == "DL: UL:") {
$(".arfc4g").css('display', 'none');
} else {
$(".arfc4g").css('display', '');
$('#earf4g').html(arf4g);
}
}

rssi = strA($xml.find('rssi').text().replace('dBm', '')),$('#rssi').html($xml.find('rssi').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dBm')).css('background', colorrssi(rssi, -124, -110, -95, -85, -75, -51));
rsrp = strA($xml.find('rsrp').text().replace('dBm', '')),$('#rsrp').html($xml.find('rsrp').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dBm')).css('background', colorrsrp(rsrp, -124, -110, -95, -85, -75, -51));
rsrq = strA($xml.find('rsrq').text().replace('dB', '')),$('#rsrq').html($xml.find('rsrq').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dB')).css('background', colorrsrq(rsrq, -30, -20, -15, -10, -6, 0));
sinr = strA($xml.find('sinr').text().replace('dB', '')),$('#sinr').html($xml.find('sinr').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dB')).css('background', colorsinr(sinr, -15, 3, 10, 15, 22, 30));
rscp = strA($xml.find('rscp').text().replace('dBm', '')),$('#rscp').html($xml.find('rscp').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dBm')).css('background', colorrscp(rscp, -115, -100, -90, -80, -70, -60));
ecio = strA($xml.find('ecio').text().replace('dB', '')),$('#ecio').html($xml.find('ecio').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dB')).css('background', colorecio(ecio, -20, -20, -15, -10, -5, 0));

if ($xml.find('txpower').text() == "") {
$(".tx").css('display', 'none');
} else {
$(".tx").css('display', '');
}
var txpower = $xml.find('txpower').text();
if (txpower.indexOf('stxpwr') == -1) {
$('#txpow4g').html($xml.find('txpower').text().replace('PPusch:','PPusch: ').replace('PPucch:','PPucch: ').replace('PSrs:','PSrs: ').replace('PPrach:','PPrach: ').replace('dBm',', ').replace('dBm',', ').replace('dBm',', ').replace('dBm',''));
txpower=txpower.slice(txpower.indexOf('PPucch:')+7,txpower.indexOf('PSrs:')-4),$("#txpow4g").css('background', colortx4power(txpower, -20, 0, 5, 10, 20, 23));
} else {
$('#txpow3g').html(txpower.replace('stxpwr:','Stxpwr: ').replace('dBm', ' dBm')),$("#txpow3g").css('background', colortx3power(txpower, -20, 0, 5, 10, 15, 23));
}

nrrsrp = strA($xml.find('nrrsrp').text().replace('dBm', '')),$('#nrrsrp').html($xml.find('nrrsrp').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dBm')).css('background', colornrrsrp(nrrsrp, -124, -115, -105, -95, -85, -85));
nrrsrq = strA($xml.find('nrrsrq').text().replace('dB', '')),$('#nrrsrq').html($xml.find('nrrsrq').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dB')).css('background', colornrrsrq(nrrsrq, -20, -20, -15, -10, -6, 0));
nrsinr = strA($xml.find('nrsinr').text().replace('dB', '')),$('#nrsinr').html($xml.find('nrsinr').text().replace('<', '').replace('=', '').replace('>', '').replace('Unknown', '0dB')).css('background', colornrsinr(nrsinr, -10, 3, 10, 15, 22, 30));

if ($xml.find('nrtxpower').text() == "") {
$(".nrtx").css('display', 'none');
} else {
$(".nrtx").css('display', '');
}
var nrtxpower = $xml.find('nrtxpower').text();
$('#nrtxpow').html($xml.find('nrtxpower').text().replace('PPusch:','PPusch: ').replace('PPucch:','PPucch: ').replace('PSrs:','PSrs: ').replace('PPrach:','PPrach: ').replace('dBm',', ').replace('dBm',', ').replace('dBm',', ').replace('dBm',''));
nrtxpower=nrtxpower.slice(nrtxpower.indexOf('PPucch:')+7,nrtxpower.indexOf('PSrs:')-4),$(".nrtxp").css('background', colornrtxpower(nrtxpower, -20, 0, 5, 10, 20, 23));

var nrufreq = $xml.find('nrulfreq').text();
var nrdfreq = $xml.find('nrdlfreq').text();
if ($xml.find('nrdlfreq').text() == "") {
$(".5ulf").css('display', 'none');
} else if ($xml.find('nrdlfreq').text() == "0kHz") {
$(".5ulf").css('display', 'none');
} else if ($xml.find('nrdlfreq').text() == "kHz") {
$(".5ulf").css('display', 'none');
} else {
$(".5ulf").css('display', '');
$('#nrudfreq').html('DL: ' + nrdfreq + '  ' + 'UL: ' + nrufreq);
}

var lufreq = $xml.find('lteulfreq').text();
var ldfreq = $xml.find('ltedlfreq').text();
if ($xml.find('ltedlfreq').text() == "") {
$(".4ulf").css('display', 'none');
} else if ($xml.find('ltedlfreq').text() == "0") {
$(".4ulf").css('display', 'none');
} else {
$(".4ulf").css('display', '');
$('#ludfreq').html('DL: ' + ldfreq + '  ' + 'UL: ' + lufreq);
}

var dlfrequency = $xml.find('dlfrequency').text().replace('kHz', '');
var dlfreq = Math.floor(dlfrequency / 1000);
console.log(dlfreq);
var ulfrequency = $xml.find('ulfrequency').text().replace('kHz','');
var ulfreq = Math.floor(ulfrequency / 1000);
console.log(ulfreq);
if ($xml.find('dlfrequency').text() == "") {
$(".ulf").css('display', 'none');
} else if ($xml.find('dlfrequency').text() == "0kHz") {
$(".ulf").css('display', 'none');
} else if ($xml.find('dlfrequency').text() == "kHz") {
$(".ulf").css('display', 'none');
} else {
$(".ulf").css('display', '');
$('#dufrequency').html('DL: ' + dlfreq + 'MHz' + '  ' + 'UL: ' + ulfreq + 'MHz');
}

if ($xml.find('dlbandwidth').text() == "") {
$(".dlul").css('display', 'none');
} else {
$(".dlul").css('display', '');
}

var udlbw = '';
var dbw = $xml.find('dlbandwidth').text();
var ubw = $xml.find('ulbandwidth').text();
if (dbw == '1400KHz') dbw = "1.4MHz";
if (ubw == '1400KHz') ubw = "1.4MHz";
if ($xml.find('dlbandwidth','ulbandwidth').text() == "20MHz") {
udlbw = '100';
$('#ulbandwidth').html(ubw + '  (' + udlbw + '%)');
$("#dlulbandreading, #arfcnreading").css('background', '#008013');
} else if ($xml.find('dlbandwidth','ulbandwidth').text() == "15MHz") {
udlbw = '75';
$('#ulbandwidth').html(ubw + '  (' + udlbw + '%)');
$("#dlulbandreading, #arfcnreading").css('background', '#00bb1c');
} else if ($xml.find('dlbandwidth','ulbandwidth').text() == "10MHz") {
udlbw = '50';
$('#ulbandwidth').html(ubw + '  (' + udlbw + '%)');
$("#dlulbandreading, #arfcnreading").css('background', '#c97f00');
} else if ($xml.find('dlbandwidth','ulbandwidth').text() == "5MHz") {
udlbw = '25';
$('#ulbandwidth').html(ubw + '  (' + udlbw + '%)');
$("#dlulbandreading, #arfcnreading").css('background', '#ebb400');
} else {
udlbw = '0';
$('#ulbandwidth').html(ubw + '  (' + udlbw + '%)');
$("#dlulbandreading, #arfcnreading").css('background', '#ffe600');
}
$('#dlbandwidth').html(dbw);

var nrarfcn = $xml.find('nrearfcn').text().replace('DL:','DL: ').replace('UL:',' UL: ');
if ($xml.find('nrearfcn').text() == "") {
$(".nrarfc,.bnr").css('display', 'none');
} else if ($xml.find('nrearfcn').text() == "DL:0 UL:0") {
$(".nrarfc,.bnr").css('display', 'none');
} else if ($xml.find('nrearfcn').text() == "DL: UL:") {
$(".nrarfc,.bnr").css('display', 'none');
} else {
$(".nrarfc,.bnr").css('display', '');
$('#nrearf').html(nrarfcn);
}

var nrband = nrarfcn.slice(3, nrarfcn.indexOf(' UL:'));
if (nrband != '')
$('#bandNR').html("N" + arfcntoband(nrband));

if ($xml.find('nrdlbandwidth').text() == "") {
$(".nrdlul").css('display', 'none');
} else {
$(".nrdlul").css('display', '');
}

var nudlbw = '';
var nrdbw = $xml.find('nrdlbandwidth').text();
var nrubw = $xml.find('nrulbandwidth').text();
if ($xml.find('nrdlbandwidth','nrulbandwidth').text() == "100MHz") {
nudlbw = '100';
$('#nrulbw').html(nrubw + '  (' + nudlbw + '%)');
$("#nrdlulbandreading, #nrarfcnreading").css('background', '#008013');
} else if ($xml.find('nrdlbandwidth','nrulbandwidth').text() == "80MHz") {
nudlbw = '75';
$('#nrulbw').html(nrubw + '  (' + nudlbw + '%)');
$("#nrdlulbandreading, #nrarfcnreading").css('background', '#00bb1c');
} else if ($xml.find('nrdlbandwidth','nrulbandwidth').text() == "60MHz") {
nudlbw = '50';
$('#nrulbw').html(nrubw + '  (' + nudlbw + '%)');
$("#nrdlulbandreading, #nrarfcnreading").css('background', '#c97f00');
} else if ($xml.find('nrdlbandwidth','nrulbandwidth').text() == "40MHz") {
nudlbw = '25';
$('#nrulbw').html(nrubw + '  (' + nudlbw + '%)');
$("#nrdlulbandreading, #nrarfcnreading").css('background', '#ebb400');
} else {
nudlbw = '0';
$('#nrulbw').html(nrubw + '  (' + nudlbw + '%)');
$("#nrdlulbandreading, #nrarfcnreading").css('background', '#ffe600');
}
$('#nrdlbw').html(nrdbw);

var dlmcs = $xml.find('dl_mcs').text();
var dlmcs0 = $xml.find('dl_mcs').text().slice(21, dlmcs.indexOf(' '));
var dlmcs1 = $xml.find('dl_mcs').text().slice(dlmcs.indexOf('Code1:') + 6);
if (dlmcs == '') {
$(".mcstbs4g").css('display', 'none');
} else {
$(".mcstbs4g").css('display', '');
$('#dlmcs0').html('0⇓:' + dlmcs0);
$('#dlmcs1').html('1⇓:' + dlmcs1);
$("#dlmcs0reading").css('background', colorcqimcs2(dlmcs0, 4, 8, 12, 20, 25, 32));
$("#dlmcs1reading").css('background', colorcqimcs1(dlmcs1, 4, 8, 12, 20, 25, 32));
}
var ul_mcs = $xml.find('ul_mcs').text().replace('mcsUpCarrier1:', '');
$('#ulmcs').html('⇑:' + ul_mcs);
$("#ulmcsreading").css('background', colorcqimcs1(ul_mcs, 4, 8, 12, 20, 25, 28));

var ultbs;
if (ul_mcs >= 0 && ul_mcs <= 9) {ultbs = ul_mcs;}
else if (ul_mcs >= 10 && ul_mcs <= 16) {ultbs = ul_mcs - 1;}
else if (ul_mcs >= 17 && ul_mcs <= 31) {ultbs = ul_mcs - 2;}
else {ultbs = 'Out';}
$('#ultbs').html('⇑:' + ultbs);
$("#ultbsreading").css('background', colorcqimcs2(ultbs, 4, 8, 12, 20, 25, 28));

if ($xml.find('cqi0,cqi1').text() == "") {
$(".cqi01").css('display','none');
} else {
$(".cqi01").css('display','');

var cqi0;
var cqi1;
cqi0 = $xml.find('cqi0').text().replace('32639','');
cqi1 = $xml.find('cqi1').text().replace('32639','');
if (cqi0 != '' && cqi1 == '') {
$('#0cqi,#1cqi').html('N/A');
} else {
$('#0cqi').html('0⇓:' + cqi0).css('background', colorcqimcs1(cqi0, 2, 4, 7, 10, 13, 18));
$('#1cqi').html('1⇓:' + cqi1).css('background', colorcqimcs2(cqi1, 2, 4, 7, 10, 13, 18));
}
}

var dltbs0;
var dltbs1;
if (dlmcs0 >= 0 && dlmcs0 <= 4) {QAM0 = 'QPSK';$("#QAM0").css('background', '#ff7300');}
else if (dlmcs0 >= 5 && dlmcs0 <= 10) {QAM0 = '16QAM';$("#QAM0").css('background', '#e0ac00');}
else if (dlmcs0 >= 11 && dlmcs0 <= 19) {QAM0 = '64QAM';$("#QAM0").css('background', '#e28f00');}
else if (dlmcs0 >= 20 && dlmcs0 <= 27) {QAM0 = '256QAM';$("#QAM0").css('background', '#008013');}
else if (dlmcs0 == 28) {QAM0 = 'QPSK';$("#QAM0").css('background', '#ff7300');}
else if (dlmcs0 == 29) {QAM0 = '16QAM';$("#QAM0").css('background', '#e0ac00');}
else if (dlmcs0 == 30) {QAM0 = '64QAM';$("#QAM0").css('background', '#e28f00');}
else if (dlmcs0 == 31) {QAM0 = '256QAM';$("#QAM0").css('background', '#008013');}
else {QAM0 = 'Out';$("#QAM0").css('background', '#aa0000');}

if (dlmcs1 >= 0 && dlmcs1 <= 4) {QAM1 = 'QPSK';$("#QAM1").css('background', '#ff7300');}
else if (dlmcs1 >= 5 && dlmcs1 <= 10) {QAM1 = '16QAM';$("#QAM1").css('background', '#e0ac00');}
else if (dlmcs1 >= 11 && dlmcs1 <= 19) {QAM1 = '64QAM';$("#QAM1").css('background', '#e28f00');}
else if (dlmcs1 >= 20 && dlmcs1 <= 27) {QAM1 = '256QAM';$("#QAM1").css('background', '#008013');}
else if (dlmcs1 == 28) {QAM1 = 'QPSK';$("#QAM1").css('background', '#ff7300');}
else if (dlmcs1 == 29) {QAM1 = '16QAM';$("#QAM1").css('background', '#e0ac00');}
else if (dlmcs1 == 30) {QAM1 = '64QAM';$("#QAM1").css('background', '#e28f00');}
else if (dlmcs1 == 31) {QAM1 = '256QAM';$("#QAM1").css('background', '#008013');}
else {QAM1 = 'Out';$("#QAM1").css('background', '#aa0000');}

if (dlmcs0 == 0) {dltbs0 = dlmcs0;}
else if (dlmcs0 == 1) {dltbs0 = 2;}
else if (dlmcs0 == 2) {dltbs0 = 4;}
else if (dlmcs0 == 3) {dltbs0 = 6;}
else if (dlmcs0 == 4) {dltbs0 = 8;}
else if (dlmcs0 >= 5 && dlmcs0 <= 20) {dltbs0 = dlmcs0 - -5;}
else if (dlmcs0 >= 21 && dlmcs0 <= 27) {dltbs0 = dlmcs0 - -6;}
else if (dlmcs0 == 28) {dltbs0 = 8;}
else if (dlmcs0 == 29) {dltbs0 = 15;}
else if (dlmcs0 == 30) {dltbs0 = 24;}
else if (dlmcs0 == 31) {dltbs0 = 27;}
else {dltbs0 = 'Out';}

if (dlmcs1 == 0) {dltbs1 = dlmcs1;}
else if (dlmcs1 == 1) {dltbs1 = 2;}
else if (dlmcs1 == 2) {dltbs1 = 4;}
else if (dlmcs1 == 3) {dltbs1 = 6;}
else if (dlmcs1 == 4) {dltbs1 = 8;}
else if (dlmcs1 >= 5 && dlmcs1 <= 20) {dltbs1 = dlmcs1 - -5;}
else if (dlmcs1 >= 21 && dlmcs1 <= 27) {dltbs1 = dlmcs1 - -6;}
else if (dlmcs1 == 28) {dltbs1 = 8;}
else if (dlmcs1 == 29) {dltbs1 = 15;}
else if (dlmcs1 == 30) {dltbs1 = 24;}
else if (dlmcs1 == 31) {dltbs1 = 27;}
else {dltbs1 = 'Out';}

$('#QAM0').html(QAM0);
$('#QAM1').html(QAM1);
$('#dltbs0').html('0⇓:' + dltbs0);
$("#dltbs0reading").css('background', colortbs2(dltbs0, -0, 4, 10, 16, 17, 31));
$('#dltbs1').html('1⇓:' + dltbs1);
$("#dltbs1reading").css('background', colortbs1(dltbs1, -0, 4, 10, 16, 17, 31));

var nrdl_mcs = $xml.find('nrdlmcs').text();
var nrdlmcs0 = $xml.find('nrdlmcs').text().slice(23, nrdl_mcs.indexOf(' '));
var nrdlmcs1 = $xml.find('nrdlmcs').text().slice(nrdl_mcs.indexOf('Code1:') + 6);
if (nrdl_mcs == '') {
$(".dlmcs5g").css('display', 'none');
} else {
$(".dlmcs5g").css('display', '');
$('#nr0dlmcs').html('0⇓:' + nrdlmcs0);
$('#nr1dlmcs').html('1⇓:' + nrdlmcs1);
$("#nr0dlmcsreading").css('background', colorcqimcs2(nrdlmcs0, 4, 8, 12, 20, 25, 32));
$("#nr1dlmcsreading").css('background', colorcqimcs1(nrdlmcs1, 4, 8, 12, 20, 25, 32));
}
var nrul_mcs = $xml.find('nrulmcs').text().replace('NRmcsUpCarrier1:','');
$('#nrulmcs').html('⇑:' + nrul_mcs);
$("#nrulmcsreading").css('background', colorcqimcs1(nrul_mcs, 4, 8, 12, 20, 25, 32));
}})}

function colorcqimcs1(cur, l0, l1, l2, l3, l4, l5) {
if (cur == '') return 'linear-gradient(to right, black 100%, black 100%)';
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {color = '#008013';
} else if (cur >= l4) {color = '#00bb1c';
} else if (cur >= l3) {color = '#e28f00';
} else if (cur >= l2) {color = '#e0ac00';
} else if (cur >= l1) {color = '#ff7300';
} else {color = '#aa0000';
}
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, black 100% ' + whitepercent + '%)';
}

function colorcqimcs2(cur, l0, l1, l2, l3, l4, l5) {
if (cur == '') return 'linear-gradient(to right, black 100%, black 100%)';
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {color = '#008013';
} else if (cur >= l4) {color = '#00bb1c';
} else if (cur >= l3) {color = '#e28f00';
} else if (cur >= l2) {color = '#e0ac00';
} else if (cur >= l1) {color = '#ff7300';
} else {color = '#aa0000';
}
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, black 100% ' + whitepercent + '%)';
}

function colortbs1(cur, l0, l1, l2, l3, l4, l5) {
if (cur == '') return 'linear-gradient(to right, black 100%, black 100%)';
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {color = '#008013';
} else if (cur >= l4) {color = '#00bb1c';
} else if (cur >= l3) {color = '#e28f00';
} else if (cur >= l2) {color = '#e0ac00';
} else if (cur >= l1) {color = '#ff7300';
} else {color = '#aa0000';
}
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, black 100% ' + whitepercent + '%)';
}

function colortbs2(cur, l0, l1, l2, l3, l4, l5) {
if (cur == '') return 'linear-gradient(to right, black 100%, black 100%)';
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {color = '#008013';
} else if (cur >= l4) {color = '#00bb1c';
} else if (cur >= l3) {color = '#e28f00';
} else if (cur >= l2) {color = '#e0ac00';
} else if (cur >= l1) {color = '#ff7300';
} else {color = '#aa0000';
}
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, black 100% ' + whitepercent + '%)';
}

function colorrssi(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {rssitxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {rssitxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {rssitxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {rssitxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {rssitxStr = "Weak"; color = '#ff7300';
} else {rssitxStr = "Bad"; color = '#aa0000';
}
$('.rssib').css('background', color);
$('#rssipercent').html(whitepercent + "%" + "  " +  rssitxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colorrscp(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {rscptxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {rscptxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {rscptxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {rscptxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {rscptxStr = "Weak"; color = '#ff7300';
} else {rscptxStr = "Bad"; color = '#aa0000';
}
$('.rscpb').css('background', color);
$('#rscppercent').html(whitepercent + "%" + "  " +  rscptxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colorecio(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {eciotxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {eciotxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {eciotxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {eciotxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {eciotxStr = "Weak"; color = '#ff7300';
} else {eciotxStr = "Bad"; color = '#aa0000';
}
$('.eciob').css('background', color);
$('#eciopercent').html(whitepercent + "%" + "  " +  eciotxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colorrsrp(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {rsrptxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {rsrptxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {rsrptxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {rsrptxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {rsrptxStr = "Weak"; color = '#ff7300';
} else {rsrptxStr = "Bad"; color = '#aa0000';
}
$('.rsrpb').css('background', color);
$('#rsrppercent').html(whitepercent + "%" + "  " +  rsrptxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colorrsrq(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {rsrqtxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {rsrqtxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {rsrqtxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {rsrqtxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {rsrqtxStr = "Weak"; color = '#ff7300';
} else {rsrqtxStr = "Bad"; color = '#aa0000';
}
$('.rsrqb').css('background', color);
$('#rsrqpercent').html(whitepercent + "%" + "  " +  rsrqtxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colorsinr(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {sinrtxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {sinrtxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {sinrtxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {sinrtxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {sinrtxStr = "Weak"; color = '#ff7300';
} else {sinrtxStr = "Bad"; color = '#aa0000';
}
$('.sinrb').css('background', color);
$('#sinrpercent').html(whitepercent + "%" + "  " +  sinrtxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colortx3power(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
if (percent < 10) percent = 10;
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l4) {color = '#aa0000';
} else if (cur >= l3) {color = '#ff7300';
} else if (cur >= l2) {color = '#e28f00';
} else if (cur >= l1) {color = '#00bb1c';
} else {color = '#008013';
}
$('.tx3b').css('background', color);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colortx4power(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
if (percent < 10) percent = 10;
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l4) {color = '#aa0000';
} else if (cur >= l3) {color = '#ff7300';
} else if (cur >= l2) {color = '#e28f00';
} else if (cur >= l1) {color = '#00bb1c';
} else {color = '#008013';
}
$('.tx4b').css('background', color);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colornrrsrp(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {nrrsrptxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {nrrsrptxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {nrrsrptxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {nrrsrptxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {nrrsrptxStr = "Weak"; color = '#ff7300';
} else {nrrsrptxStr = "Bad"; color = '#aa0000';
}
$('.nrrsrpb').css('background', color);
$('#nrrsrppercent').html(whitepercent + "%" + "  " +  nrrsrptxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colornrrsrq(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {nrrsrqtxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {nrrsrqtxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {nrrsrqtxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {nrrsrqtxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {nrrsrqtxStr = "Weak"; color = '#ff7300';
} else {nrrsrqtxStr = "Bad"; color = '#aa0000';
}
$('.nrrsrqb').css('background', color);
$('#nrrsrqpercent').html(whitepercent + "%" + "  " +  nrrsrqtxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colornrsinr(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l5) {nrsinrtxStr = "Excellent"; color = '#008013';
} else if (cur >= l4) {nrsinrtxStr = "V.Good"; color = '#00bb1c';
} else if (cur >= l3) {nrsinrtxStr = "Good"; color = '#e28f00';
} else if (cur >= l2) {nrsinrtxStr = "Midlde"; color = '#e0ac00';
} else if (cur >= l1) {nrsinrtxStr = "Weak"; color = '#ff7300';
} else {nrsinrtxStr = "Bad"; color = '#aa0000';
}
$('.nrsinrb').css('background', color);
$('#nrsinrpercent').html(whitepercent + "%" + "  " +  nrsinrtxStr);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function colornrtxpower(cur, l0, l1, l2, l3, l4, l5) {
if (cur < l0) cur = l0;
if (cur > l5) cur = l5;
var percent = parseInt((cur - l0) * 100 / (l5 - l0));
if (percent < 10) percent = 10;
var whitepercent = percent + 1;
if (whitepercent > 100) whitepercent = 100;
if (cur >= l4) {color = '#aa0000';
} else if (cur >= l3) {color = '#ff7300';
} else if (cur >= l2) {color = '#e28f00';
} else if (cur >= l1) {color = '#00bb1c';
} else {color = '#008013';
}
$('.nrtxp').css('background', color);
return 'linear-gradient(to right, ' + color + ' ' + percent + '%, hsla(0,0%,100%,0.0) ' + whitepercent + '%)';
}

function strA(val) {
val = val.replace('&gt;=', '');
val = val.replace('&amp;lt;=', '');
val = val.replace('&lt;', '');
val = val.replace('>', '');
val = val.replace('<', '');
val = val.replace('=', '');
val = val.replace('NaN', '0');
return val;
}

function getNetmode() {
$.ajax({type: "GET",dataType: "text",async: !0,url: "/api/net/net-mode",success: function (data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
nroption = $xml.find('networkOption').text();
if (nroption != '') {
if (nroption == '0') {
$('#leftband').html('5G NSA');
$('#btnNSA').prop('checked', false);
$("#nsacol").css('color', 'yellow').css('background', 'green').css('font-weight', 'bold');
} else if (nroption == '1') {
$('#leftband').html('5G SA');
$('#btnSA').prop('checked', false);
$("#sacol").css('color', 'yellow').css('background', 'green').css('font-weight', 'bold');
} else if (nroption == '2') {
$('#leftband').html('5G SA+NSA');
$('#btnSANSA').prop('checked', false);
$("#sansacol").css('color', 'yellow').css('background', 'green').css('font-weight', 'bold');
}
nroption = "<networkOption>" + nroption + "</networkOption>";
}
netmode = data, lteband = extractXML("LTEBand", data), $("#allowed").html(_4GType(lteband));
netmode = data, lteband = extractXML("LTEBand", data), $("#bando").html(B_4GType(lteband));
netmode = data, NetworkBand = extractXML("NetworkBand", data), $("#band3").html(B_2G_3GType(NetworkBand));
netmode = data, extractXML("LTEBand", data), $("#LLTEBand").html($xml.find('LTEBand').text());
netmode = data, extractXML("NetworkBand", data), $("#LNetworkBand").html($xml.find('NetworkBand').text());
netmode = data, extractXML("NetworkMode", data), $("#LNetMode").html($xml.find('NetworkMode').text());
netmode = data, NetOption = extractXML("networkOption", data), NetOption ? $("#NetOption").html($xml.find('networkOption').text()): $(".neo").css('display', 'none');
}})}

function _4GType(n) {
if ((n == '20800800C5') || (n == '7FFFFFFFFFFFFFFF') || (n == '1A000000001') || (n == '1A000000085') || (n == '2000000085') || (n == '7E2880800D5') || (n == '7A0880800D5') || (n == '20000800C5') || (n == '20880800C5') || (n == '3E2880800D5') || (n == '1A08A0C00DD') || (n == '7E2880800D0') || (n == '1A08A0C00DF') || (n == 'A0880800C1') || (n == 'A0880800C5') || (n == '1A008080085') || (n == '7A0000800C5') || (n == '1A000080085') || (n == '1E20A000095') || (n == '7E2880E00D5') || (n == '2000000680380')) { return "Auto"; }
for (data_out = "", x = 0; x < 90; x++) tb = Math.pow(2, x), color = BigInt("0x" + n) & BigInt(tb) ? (data_out += "B" + String(x + 1) + "+", "#686") : "transparent", $("#cb" + String(x + 1)).css("background", color);
return data_out = data_out.replace(/\++$/, ""), data_out}

function getInfo() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/information', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
$('#model').html(' ( ' + conMod($xml.find('DeviceName').text()) + ' ) ');
$('#Software').html(' ( ' + conMod($xml.find('SoftwareVersion').text()) + ' ) ');
$('#WebUI').html(' ( ' + conMod($xml.find('WebUIVersion').text()) + ' ) ');
havename = true;
getantennastatus();
if ($xml.find('WanIPAddress').text() == "") {
ipAddr = $xml.find('SecondWanIPAddress').text(), $xml.find('WanIPAddress').text();
$("#ipv4").css('display', 'none');
} else {
ipAddr = $xml.find('WanIPAddress').text(), $xml.find('SecondWanIPAddress').text();
$("#ipv4").css('display', '');
$('#ipv4').html(' ( ' + ipAddr + ' ) ');
}}})}

function getStatus() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/monitoring/status', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
if (conMod($xml.find('ConnectionStatus').text()) == "Connected") {
$("#stat").css('background', '#008000');
$("#conn").css('color', '#d1cece');
} else if (conMod($xml.find('ConnectionStatus').text()) == "Connecting") {
$("#stat").css('background', '#c97f00');
$("#conn").css('color', '#d1cece');
} else {
$("#stat").css('background', '#aa0000');
$("#conn").css('color', '#d1cece');
}
$('#conn').html(' ( ' + conMod($xml.find('ConnectionStatus').text()) + ' ) ');

if (conMod($xml.find('ConnectionStatus').text() == "")) {
$('#conn').html("Not Connected");
} else {
$('#conn').html(' ( ' + conMod($xml.find('ConnectionStatus').text()) + ' ) ');
}
if (netType($xml.find('CurrentNetworkTypeEx').text() == "")) {
$('#mode').html("Not Connected");
} else {
$('#mode').html(netType($xml.find('CurrentNetworkTypeEx').text()));
}
if ($xml.find('PrimaryDns').text() == "") {
$("#wanipv4dns").css('display', 'none');
} else {
$("#wanipv4dns").css('display', '');
$('#wanipv4dns').html(' ( ' + $xml.find('PrimaryDns').text() + ' / ' + $xml.find('SecondaryDns').text() + ' ) ');
}

var signalicon = $xml.find('SignalIcon').text();
$("#signal1").css('background', '#b7d9fe');
$("#signal2").css('background', '#b7d9fe');
$("#signal3").css('background', '#b7d9fe');
$("#signal4").css('background', '#b7d9fe');
$("#signal5").css('background', '#b7d9fe');
if (signalicon >= '1') $("#signal1").css('background', '#b82222');
if (signalicon >= '2') $("#signal2").css('background', '#b87022');
if (signalicon >= '3') $("#signal3").css('background', '#cbdf1b');
if (signalicon >= '4') $("#signal4").css('background', '#81c332');
if (signalicon >= '5') $("#signal5").css('background', '#3d7e00');

var signaliconnr = $xml.find('SignalIconNr').text();
$("#nrsignal1").css('background', '#b7d9fe');
$("#nrsignal2").css('background', '#b7d9fe');
$("#nrsignal3").css('background', '#b7d9fe');
$("#nrsignal4").css('background', '#b7d9fe');
$("#nrsignal5").css('background', '#b7d9fe');
if (signaliconnr >= '1') $("#nrsignal1").css('background', '#b82222');
if (signaliconnr >= '2') $("#nrsignal2").css('background', '#b87022');
if (signaliconnr >= '3') $("#nrsignal3").css('background', '#cbdf1b');
if (signaliconnr >= '4') $("#nrsignal4").css('background', '#81c332');
if (signaliconnr >= '5') $("#nrsignal5").css('background', '#3d7e00');
}})}

function conMod(mode) {
switch (mode) {
case "900":return "Connecting";
case "901":return "Connected";
case "902":return "Not Connected";
case "903":return "Disconnect";
case "904":return "Connection Failed";
case "905":return "No Service";
case "906":return "Connection Error";
case "33":return "Disconnected";
case "0":return "Disconnected";
default:return mode;
}}

function netType(mode) {
switch (mode) {
case "0":return 'No Service';
case "1":return 'GSM (2G)';
case "2":return 'GPRS (2G)';
case "3":return 'EDGE (2G)';
case "41":return 'UMTS (3G)';
case "42":return 'HSDPA (3G)';
case "43":return 'HSUPA (3G)';
case "44":return 'HSPA (3G)';
case "45":return 'HSPA+ (3.5G)';
case "46":return 'DC-HSPA+ (3.5G)';
case "101":return 'LTE (4G)';
case "1011":return 'LTE CA (4G+)';
case "111":return 'NR (5G)';
default:return mode;
}}

function B_2G_3GType(value) {
switch (value) {
case "80": return "2G 1800MHz";
case "300": return "2G 900MHz";
case "80000": return "2G 850MHz";
case "400000":
$("#w01").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 2100MHz";
case "800000":
$("#w02").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 1900MHz";
case "2000000":
$("#w04").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 1700MHz";
case "4000000":
$("#w05").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 850MHz";
case "8000000":
$("#w06").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 800MHz";
case "2000000000000":
$("#w08").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 900MHz";
case "4000000000000":
$("#w09").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 1700MHz";
case "1000000000000000":
$("#w019").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold'); return "3G 800MHz";
case "3FFFFFFF": return "Auto";
default: return "" + value;}}

function B_4GType(value) {
b1 = 0x1; b2 = 0x2; b3 = 0x4; b4 = 0x8; b5 = 0x10; b7 = 0x40; b8 = 0x80; b11 = 0x400; b12 = 0x800; b13 = 0x1000; b14 = 0x2000; b17 = 0x10000; b18 = 0x20000; b19 = 0x40000; b20 = 0x80000; b21 = 0x100000; b24 = 0x800000; b25 = 0x1000000; b26 = 0x2000000; b28 = 0x8000000; b29 = 0x10000000; b30 = 0x20000000; b31 = 0x40000000; b32 = 0x80000000; b34 = 0x200000000; b37 = 0x1000000000; b38 = 0x2000000000; b39 = 0x4000000000; b40 = 0x8000000000; b41 = 0x10000000000; b42 = 0x20000000000; b43 = 0x40000000000; b44 = 0x80000000000; b46 = 0x200000000000; b47 = 0x400000000000; b48 = 0x800000000000; b49 = 0x1000000000000; b50 = 0x2000000000000; b51 = 0x4000000000000; b52 = 0x8000000000000; b53 = 0x10000000000000;
var lteBand = " ";
var lbm = parseInt(value, 16);
if ((value == '20800800C5') || (value == '7FFFFFFFFFFFFFFF') || (value == '1A000000001') || (value == '1A000000085') || (value == '2000000085') || (value == '7E2880800D5') || (value == '7A0880800D5') || (value == '20000800C5') || (value == '20880800C5') || (value == '3E2880800D5') || (value == '1A08A0C00DD') || (value == '7E2880800D0') || (value == '1A08A0C00DF') || (value == 'A0880800C1') || (value == 'A0880800C5') || (value == '1A008080085') || (value == '7A0000800C5') || (value == '1A000080085') || (value == '1E20A000095') || (value == '7E2880E00D5') || (value == '2000000680380')) {
lteBand = "Auto";
} else {
if ((lbm & b1) != 0) {
lteBand = lteBand + "2100" + "\/";$("#01").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b2) != 0) {
lteBand = lteBand + "1900" + "\/";$("#02").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b3) != 0) {
lteBand = lteBand + "1800" + "\/";$("#03").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b4) != 0) {
lteBand = lteBand + "1700" + "\/";$("#04").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b5) != 0) {
lteBand = lteBand + "850" + "\/";$("#05").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b7) != 0) {
lteBand = lteBand + "2600" + "\/";$("#07").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b8) != 0) {
lteBand = lteBand + "900" + "\/";$("#08").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b11) != 0) {
lteBand = lteBand + "1500" + "\/";$("#011").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b12) != 0) {
lteBand = lteBand + "700" + "\/";$("#012").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b13) != 0) {
lteBand = lteBand + "700" + "\/";$("#013").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b14) != 0) {
lteBand = lteBand + "700" + "\/";$("#014").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b17) != 0) {
lteBand = lteBand + "700" + "\/";$("#017").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b18) != 0) {
lteBand = lteBand + "850" + "\/";$("#018").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b19) != 0) {
lteBand = lteBand + "850" + "\/";$("#019").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b20) != 0) {
lteBand = lteBand + "800" + "\/";$("#020").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b21) != 0) {
lteBand = lteBand + "1500" + "\/";$("#021").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b24) != 0) {
lteBand = lteBand + "1600" + "\/";$("#024").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b25) != 0) {
lteBand = lteBand + "1900" + "\/";$("#025").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b26) != 0) {
lteBand = lteBand + "850" + "\/";$("#026").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b28) != 0) {
lteBand = lteBand + "700" + "\/";$("#028").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b29) != 0) {
lteBand = lteBand + "700" + "\/";$("#029").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b30) != 0) {
lteBand = lteBand + "2300" + "\/";$("#030").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b31) != 0) {
lteBand = lteBand + "450" + "\/";$("#031").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if ((lbm & b32) != 0) {
lteBand = lteBand + "1500" + "\/";$("#032").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b34) != 0) {
lteBand = lteBand + "2000" + "\/";$("#034").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b37) != 0) {
lteBand = lteBand + "1900" + "\/";$("#037").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b38) != 0) {
lteBand = lteBand + "2600" + "\/";$("#038").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b39) != 0) {
lteBand = lteBand + "1900" + "\/";$("#039").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b40) != 0) {
lteBand = lteBand + "2300" + "\/";$("#040").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b41) != 0) {
lteBand = lteBand + "2500" + "\/";$("#041").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b42) != 0) {
lteBand = lteBand + "3500" + "\/";$("#042").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b43) != 0) {
lteBand = lteBand + "3700" + "\/";$("#043").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b44) != 0) {
lteBand = lteBand + "700" + "\/";$("#044").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b46) != 0) {
lteBand = lteBand + "5200" + "\/";$("#046").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b47) != 0) {
lteBand = lteBand + "5900" + "\/";$("#047").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b48) != 0) {
lteBand = lteBand + "3500" + "\/";$("#048").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b49) != 0) {
lteBand = lteBand + "3500" + "\/";$("#049").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b50) != 0) {
lteBand = lteBand + "1500" + "\/";$("#050").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b51) != 0) {
lteBand = lteBand + "1500" + "\/";$("#051").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b52) != 0) {
lteBand = lteBand + "3300" + "\/";$("#052").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (BitwiseAndLarge(lbm, b53) != 0) {
lteBand = lteBand + "2500" + "\/";$("#053").css('background', 'green').css('color', 'yellow').css('font-weight', 'bold');}

if (lteBand.substring(lteBand.length - 1, lteBand.length) == "\/") {lteBand = lteBand.substring(0, lteBand.length - 1);}
return lteBand;}
}

function BitwiseAndLarge(val1, val2) {
var shift = 0,
result = 0;
var mask = ~((~0) << 30);
var divisor = 1 << 30;
while ((val1 != 0) && (val2 != 0)) {
var rs = (mask & val1) & (mask & val2);
val1 = Math.floor(val1 / divisor);
val2 = Math.floor(val2 / divisor);
var i = shift++;
for (i; i--;) {
rs *= divisor;
}
result += rs;
}
return result;
}

function ReadHardBand() {
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/net/net-mode-list', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var NetMode = $xml.find('Access').text();
if (NetMode.indexOf("01") > -1) {$(".sh2G").css('display','');} else {$(".sh2G").css('display','none');}
if (NetMode.indexOf("02") > -1) {$(".sh3G").css('display','');} else {$(".sh3G").css('display','none');}

var BandList = $xml.find('BandList').text();
var xmlt = xml.slice(xml.indexOf("<BandList>"), xml.indexOf("</BandList>"));
if (xmlt.indexOf("All bands") > -1) {
xmlt = xmlt.slice(0, xmlt.indexOf("All bands"));
}
var val ='';
while (xmlt.indexOf("<Value>") > -1) {
val = xmlt.slice(xmlt.indexOf("<Value>") + 7, xmlt.indexOf("</Value>"));
show3G(val);
xmlt = xmlt.replace('<Value>' + val + '</Value>', "");
}
xmlt = xml.slice(xml.indexOf("<LTEBand>"), xml.indexOf("</LTEBand>"));
val = xmlt.slice(xmlt.indexOf("<Value>") + 7, xmlt.indexOf("</Value>"));
show4G(val);
}})}

function show3G(val) {
var x = hex_to_bin(val);
x = x.split("").reverse().join("");
if (x.charAt(22) == '1') {$("#sWB1").css('display','');} else {$("#sWB1").css('display','none');}
if (x.charAt(23) == '1') {$("#sWB2").css('display','');} else {$("#sWB2").css('display','none');}
if (x.charAt(25) == '1') {$("#sWB4").css('display','');} else {$("#sWB4").css('display','none');}
if (x.charAt(26) == '1') {$("#sWB5").css('display','');} else {$("#sWB5").css('display','none');}
if (x.charAt(27) == '1') {$("#sWB6").css('display','');} else {$("#sWB6").css('display','none');}
if (x.charAt(49) == '1') {$("#sWB8").css('display','');} else {$("#sWB8").css('display','none');}
if (x.charAt(50) == '1') {$("#sWB9").css('display','');} else {$("#sWB9").css('display','none');}
if (x.charAt(60) == '1') {$("#sWB19").css('display','');} else {$("#sWB19").css('display','none');}
}

function show4G(val) {
var x = hex_to_bin(val);
x = '2' + x.split("").reverse().join("");
if (x.charAt(1) == '1') {$("#sB1").css('display','');} else {$("#sB1").css('display','none');}
if (x.charAt(2) == '1') {$("#sB2").css('display','');} else {$("#sB2").css('display','none');}
if (x.charAt(3) == '1') {$("#sB3").css('display','');} else {$("#sB3").css('display','none');}
if (x.charAt(4) == '1') {$("#sB4").css('display','');} else {$("#sB4").css('display','none');}
if (x.charAt(5) == '1') {$("#sB5").css('display','');} else {$("#sB5").css('display','none');}
if (x.charAt(7) == '1') {$("#sB7").css('display','');} else {$("#sB7").css('display','none');}
if (x.charAt(8) == '1') {$("#sB8").css('display','');} else {$("#sB8").css('display','none');}
if (x.charAt(12) == '1') {$("#sB12").css('display','');} else {$("#sB12").css('display','none');}
if (x.charAt(13) == '1') {$("#sB13").css('display','');} else {$("#sB13").css('display','none');}
if (x.charAt(17) == '1') {$("#sB17").css('display','');} else {$("#sB17").css('display','none');}
if (x.charAt(18) == '1') {$("#sB18").css('display','');} else {$("#sB18").css('display','none');}
if (x.charAt(19) == '1') {$("#sB19").css('display','');} else {$("#sB19").css('display','none');}
if (x.charAt(20) == '1') {$("#sB20").css('display','');} else {$("#sB20").css('display','none');}
if (x.charAt(25) == '1') {$("#sB25").css('display','');} else {$("#sB25").css('display','none');}
if (x.charAt(26) == '1') {$("#sB26").css('display','');} else {$("#sB26").css('display','none');}
if (x.charAt(27) == '1') {$("#sB27").css('display','');} else {$("#sB27").css('display','none');}
if (x.charAt(28) == '1') {$("#sB28").css('display','');} else {$("#sB28").css('display','none');}
if (x.charAt(29) == '1') {$("#sB29").css('display','');} else {$("#sB29").css('display','none');}
if (x.charAt(30) == '1') {$("#sB30").css('display','');} else {$("#sB30").css('display','none');}
if (x.charAt(32) == '1') {$("#sB32").css('display','');} else {$("#sB32").css('display','none');}
if (x.charAt(34) == '1') {$("#sB34").css('display','');} else {$("#sB34").css('display','none');}
if (x.charAt(38) == '1') {$("#sB38").css('display','');} else {$("#sB38").css('display','none');}
if (x.charAt(39) == '1') {$("#sB39").css('display','');} else {$("#sB39").css('display','none');}
if (x.charAt(40) == '1') {$("#sB40").css('display','');} else {$("#sB40").css('display','none');}
if (x.charAt(41) == '1') {$("#sB41").css('display','');} else {$("#sB41").css('display','none');}
if (x.charAt(42) == '1') {$("#sB42").css('display','');} else {$("#sB42").css('display','none');}
if (x.charAt(43) == '1') {$("#sB43").css('display','');} else {$("#sB43").css('display','none');}
if (x.charAt(44) == '1') {$("#sB44").css('display','');} else {$("#sB44").css('display','none');}
if (x.charAt(46) == '1') {$("#sB46").css('display','');} else {$("#sB46").css('display','none');}
if (x.charAt(47) == '1') {$("#sB47").css('display','');} else {$("#sB47").css('display','none');}
if (x.charAt(48) == '1') {$("#sB48").css('display','');} else {$("#sB48").css('display','none');}
if (x.charAt(49) == '1') {$("#sB49").css('display','');} else {$("#sB49").css('display','none');}
if (x.charAt(50) == '1') {$("#sB50").css('display','');} else {$("#sB50").css('display','none');}
if (x.charAt(51) == '1') {$("#sB51").css('display','');} else {$("#sB51").css('display','none');}
if (x.charAt(52) == '1') {$("#sB52").css('display','');} else {$("#sB52").css('display','none');}
if (x.charAt(53) == '1') {$("#sB53").css('display','');} else {$("#sB53").css('display','none');}
}

function clearband() {
$("#WB1").prop('checked',false),$("#w01").css('background','').css('color','');
$("#WB2").prop('checked',false),$("#w02").css('background','').css('color','');
$("#WB4").prop('checked',false),$("#w04").css('background','').css('color','');
$("#WB5").prop('checked',false),$("#w05").css('background','').css('color','');
$("#WB6").prop('checked',false),$("#w06").css('background','').css('color','');
$("#WB8").prop('checked',false),$("#w08").css('background','').css('color','');
$("#WB9").prop('checked',false),$("#w09").css('background','').css('color','');
$("#WB19").prop('checked',false),$("#w019").css('background','').css('color','');
$("#B1").prop('checked',false),$("#01").css('background','').css('color','');
$("#B2").prop('checked',false),$("#02").css('background','').css('color','');
$("#B3").prop('checked',false),$("#03").css('background','').css('color','');
$("#B4").prop('checked',false),$("#04").css('background','').css('color','');
$("#B5").prop('checked',false),$("#05").css('background','').css('color','');
$("#B7").prop('checked',false),$("#07").css('background','').css('color','');
$("#B8").prop('checked',false),$("#08").css('background','').css('color','');
$("#B12").prop('checked',false),$("#012").css('background','').css('color','');
$("#B13").prop('checked',false),$("#013").css('background','').css('color','');
$("#B17").prop('checked',false),$("#017").css('background','').css('color','');
$("#B18").prop('checked',false),$("#018").css('background','').css('color','');
$("#B19").prop('checked',false),$("#019").css('background','').css('color','');
$("#B20").prop('checked',false),$("#020").css('background','').css('color','');
$("#B25").prop('checked',false),$("#025").css('background','').css('color','');
$("#B26").prop('checked',false),$("#026").css('background','').css('color','');
$("#B27").prop('checked',false),$("#027").css('background','').css('color','');
$("#B28").prop('checked',false),$("#028").css('background','').css('color','');
$("#B29").prop('checked',false),$("#029").css('background','').css('color','');
$("#B30").prop('checked',false),$("#030").css('background','').css('color','');
$("#B32").prop('checked',false),$("#032").css('background','').css('color','');
$("#B34").prop('checked',false),$("#034").css('background','').css('color','');
$("#B38").prop('checked',false),$("#038").css('background','').css('color','');
$("#B39").prop('checked',false),$("#039").css('background','').css('color','');
$("#B40").prop('checked',false),$("#040").css('background','').css('color','');
$("#B41").prop('checked',false),$("#041").css('background','').css('color','');
$("#B42").prop('checked',false),$("#042").css('background','').css('color','');
$("#B43").prop('checked',false),$("#043").css('background','').css('color','');
$("#B44").prop('checked',false),$("#044").css('background','').css('color','');
$("#B46").prop('checked',false),$("#046").css('background','').css('color','');
$("#B47").prop('checked',false),$("#047").css('background','').css('color','');
$("#B48").prop('checked',false),$("#048").css('background','').css('color','');
$("#B49").prop('checked',false),$("#049").css('background','').css('color','');
$("#B50").prop('checked',false),$("#050").css('background','').css('color','');
$("#B51").prop('checked',false),$("#051").css('background','').css('color','');
$("#B52").prop('checked',false),$("#052").css('background','').css('color','');
$("#B53").prop('checked',false),$("#053").css('background','').css('color','');
$("#btnNSA").prop('checked',false),$("#nsacol").css('background','').css('color','');
$("#btnSA").prop('checked',false),$("#sacol").css('background','').css('color','');
$("#btnSANSA").prop('checked',false),$("#sansacol").css('background','').css('color','');
$("#btnNR").prop('checked',false);
}

function bin_to_hex(str) {
var hex_array = [{ key: 0, val: "0000" }, { key: 1, val: "0001" }, { key: 2, val: "0010" }, { key: 3, val: "0011" }, { key: 4, val: "0100" }, { key: 5, val: "0101" }, { key: 6, val: "0110" }, { key: 7, val: "0111" },
{ key: 8, val: "1000" }, { key: 9, val: "1001" }, { key: 'a', val: "1010" }, { key: 'b', val: "1011" }, { key: 'c', val: "1100" }, { key: 'd', val: "1101" }, { key: 'e', val: "1110" }, { key: 'f', val: "1111" }];
var value ='';
var list = [];
if (str.length % 4 !== 0) {
var a = "0000";
var b = a.substring(0, 4 - str.length % 4);
str = b.concat(str);
}
while (str.length > 4) {
list.push(str.substring(0, 4));
str = str.substring(4);
}
list.push(str);
for (var i = 0; i < list.length; i++) {
for (var j = 0; j < hex_array.length; j++) {
if (list[i] == hex_array[j].val) {
value = value.concat(hex_array[j].key);
break;
}}}
value = value.replace(/\b(0+)/gi, "");
if (value =='') value = '0';
return value;
}

function hex_to_bin(str) {
var hex_array = [{ key: 0, val: "0000" }, { key: 1, val: "0001" }, { key: 2, val: "0010" }, { key: 3, val: "0011" }, { key: 4, val: "0100" }, { key: 5, val: "0101" }, { key: 6, val: "0110" }, { key: 7, val: "0111" },
{ key: 8, val: "1000" }, { key: 9, val: "1001" }, { key: 'a', val: "1010" }, { key: 'b', val: "1011" }, { key: 'c', val: "1100" }, { key: 'd', val: "1101" }, { key: 'e', val: "1110" }, { key: 'f', val: "1111" }];
str = str.toLowerCase();
var value = "";
for (var i = 0; i < str.length; i++) {
for (var j = 0; j < hex_array.length; j++) {
if (str.charAt(i) == hex_array[j].key) {
value = value.concat(hex_array[j].val);
break;
}}}
return value;
}

function err(n, e, r) {
suspend = 1, $("#t").html("! Error Executing Request !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000), console.log(n), console.log(e), console.log(r)
}

function extractXML(n, e) {
try {
return e.split("</" + n + ">")[0].split("<" + n + ">")[1]
} catch (n) {
return n.message
}}

function refresh(val,val2,val3,nroption){
suspend = 1, $("#t").html("! Executing The Request !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/net/net-mode', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',
data:'<request><NetworkMode>'+val+'</NetworkMode><NetworkBand>'+val2+'</NetworkBand><LTEBand>'+val3+'</LTEBand><networkOption>' + nroption + '</networkOption></request>',success: function(suspend) {clearband();$("#showBand").hide(),suspend = 1, $("#t").html("! Request Done !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000)},error: err})}, 2e3)}})}

function setBands() {
if ($("#WB1").is(':checked')) {
refresh('02', '400000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 2100-B1 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB2").is(':checked')) {
refresh('02', '800000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 1900-B2 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB4").is(':checked')) {
refresh('02', '2000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 1700-B4 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB5").is(':checked')) {
refresh('02', '4000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 850-B5 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB6").is(':checked')) {
refresh('02', '8000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 800-B6 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB8").is(':checked')) {
refresh('02', '2000000000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 900-B8 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB9").is(':checked')) {
refresh('02', '4000000000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 1700-B9 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}
if ($("#WB19").is(':checked')) {
refresh('02', '1000000000000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Activating ( 800-B19 ) 3G !").show().css('background', 'rgb(219, 120, 7)');return;}

var val = 0;
var lbm = 0;
if ($("#B1").is(':checked')) {val = val + 1; lbm += b1;}
if ($("#B2").is(':checked')) {val = val + 2; lbm += b2;}
if ($("#B3").is(':checked')) {val = val + 4; lbm += b3;}
if ($("#B4").is(':checked')) {val = val + 8; lbm += b4;}
if ($("#B5").is(':checked')) {val = val + 10; lbm += b5;}
if ($("#B8").is(':checked')) {val = val + 80; lbm += b8;}
if ($("#B11").is(':checked')) {val = val + 400; lbm += b11;}
if ($("#B12").is(':checked')) {val = val + 800; lbm += b12;}
if ($("#B13").is(':checked')) {val = val + 1000; lbm += b13;}
if ($("#B14").is(':checked')) {val = val + 2000; lbm += b14;}
if ($("#B17").is(':checked')) {val = val + 10000; lbm += b17;}
if ($("#B18").is(':checked')) {val = val + 20000; lbm += b18;}
if ($("#B19").is(':checked')) {val = val + 40000; lbm += b19;}
if ($("#B20").is(':checked')) {val = val + 80000; lbm += b20;}
if ($("#B21").is(':checked')) {val = val + 100000; lbm += b21;}
if ($("#B24").is(':checked')) {val = val + 800000; lbm += b24;}
if ($("#B25").is(':checked')) {val = val + 1000000; lbm += b25;}
if ($("#B26").is(':checked')) {val = val + 2000000; lbm += b26;}
if ($("#B28").is(':checked')) {val = val + 8000000; lbm += b28;}
if ($("#B29").is(':checked')) {val = val + 10000000; lbm += b29;}
if ($("#B30").is(':checked')) {val = val + 20000000; lbm += b30;}
if ($("#B31").is(':checked')) {val = val + 40000000; lbm += b31;}
if ($("#B32").is(':checked')) {val = val + 80000000; lbm += b32;}
if ($("#B34").is(':checked')) {val = val + 200000000; lbm += b34;}
if ($("#B37").is(':checked')) {val = val + 1000000000; lbm += b37;}
if ($("#B38").is(':checked')) {val = val + 2000000000; lbm += b38;}
if ($("#B39").is(':checked')) {val = val + 4000000000; lbm += b39;}
if ($("#B40").is(':checked')) {val = val + 8000000000; lbm += b40;}
if ($("#B41").is(':checked')) {val = val + 10000000000; lbm += b41;}
if ($("#B42").is(':checked')) {val = val + 20000000000; lbm += b42;}
if ($("#B43").is(':checked')) {val = val + 40000000000; lbm += b43;}
if ($("#B44").is(':checked')) {val = val + 80000000000; lbm += b44;}
if ($("#B46").is(':checked')) {val = val + 200000000000; lbm += b46;}
if ($("#B47").is(':checked')) {val = val + 400000000000; lbm += b47;}
if ($("#B48").is(':checked')) {val = val + 800000000000; lbm += b48;}
if ($("#B49").is(':checked')) {val = val + 1000000000000; lbm += b49;}
if ($("#B50").is(':checked')) {val = val + 2000000000000; lbm += b50;}
if ($("#B51").is(':checked')) {val = val + 4000000000000; lbm += b51;}
if ($("#B52").is(':checked')) {val = val + 8000000000000; lbm += b52;}
if ($("#B53").is(':checked')) {val = val + 10000000000000; lbm += b53;}
if ($("#B7").is(':checked')) {hex_value = '' + val; val = parseInt(hex_value, 16); val = val + 64; lbm += b7; hex_value = val.toString(16);} else {hex_value = '' + val;}

if ($("#btnNSA").is(':checked')) {nroption = '0';}
if ($("#btnSA").is(':checked')) {nroption = '1';}
if ($("#btnSANSA").is(':checked')) {nroption = '2';}

if (hex_value == 0 + nroption) {
suspend = 1, $("#t").html("! Please Choose Any Frequency Before Done !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}

if (hex_value == 0) {
if ($("#btnNSA").is(':checked')) {
refresh('00', '00000000', '7FFFFFFFFFFFFFFF', '0');
suspend = 1, $("#t").html("! Activating The 5G NSA !").show().css('background', 'rgb(219, 120, 7)');}
if ($("#btnSA").is(':checked')) {
refresh('00', '00000000', '7FFFFFFFFFFFFFFF', '1');
suspend = 1, $("#t").html("! Activating The 5G SA !").show().css('background', 'rgb(219, 120, 7)');}
if ($("#btnSANSA").is(':checked')) {
refresh('00', '00000000', '7FFFFFFFFFFFFFFF', '2');
suspend = 1, $("#t").html("! Activating The 5G SA+NSA !").show().css('background', 'rgb(219, 120, 7)');}return;}

if ($("#btnNR").is(':checked')) {
refresh('00', '00000000', '' + hex_value, '' + nroption);
suspend = 1, $("#t").html("! Activating The 4G is Being With The 5G !").show().css('background', 'rgb(219, 120, 7)');
} else {
refresh('03', '3FFFFFFF', '' + hex_value);
suspend = 1, $("#t").html("! Activating The 4G is Being !").show().css('background', 'rgb(219, 120, 7)');}
}

function bandselect(n) {
if (mainband = mainband && null, 0 == arguments.length) {
if (null == (e = (e = prompt("请输入 LTE 频段编号, FDD 频段 : (B1-2100) (B3-1800) (B5-850) (B7-2600) (B8-900) (B28-700) } TDD 频段 : (B38-2600) (B40 -2300) (B41-2500) (B42-3500) }. 用 + Char 分隔（例如 1+3 或 3+28）.", band)) && e.toLowerCase()) || "" === e) return
} else var e = arguments[0];
var n = e.split("+"),
t = 0;
if ("AUTO" === e.toUpperCase()) t = "7FFFFFFFFFFFFFFF";
else {
for (var r = 0; r < n.length; r++) {
if (-1 != n[r].toLowerCase().indexOf("m") && (n[r] = n[r].replace("m", ""), mainband = n[r]),"AUTO" === n[r].toUpperCase()) {t = "7FFFFFFFFFFFFFFF";break}
t += Math.pow(2, parseInt(n[r]) - 1)
}
t = t.toString(16)
}
if (mainband) return _2ndrun = n, void bandselect(String(mainband));
suspend = 1, $("#t").html("! Please Wait !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,success: function(n) {
var n = n.split('name="csrf_token" content="'),
e = n[n.length - 1].split('"')[0],
r = "00";
setTimeout(function() {
$.ajax({type: "POST",async: !0,url: "/api/net/net-mode",headers: {__RequestVerificationToken: e},contentType: "application/xml",
data: "<request><NetworkMode>" + r + "</NetworkMode><NetworkBand>3FFFFFFF</NetworkBand><LTEBand>" + t + "</LTEBand></request>",
success: function(n) {$("#showBand").hide(),suspend = 1, $("#t").html("! Request Done !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000), _2ndrun , window.setTimeout(function() {bandselect(_2ndrun.join("+")), _2ndrun = !1}, 2e3)},error: err})}, 2e3)}})}

function _auto(n) {
refresh('00', '3FFFFFFF', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Auto Mode is Being Enabled !").show().css('background', 'rgb(219, 120, 7)');}

function _2G(n) {
refresh('01', '3FFFFFFF', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Enable 2G Automatic mode !").show().css('background', 'rgb(219, 120, 7)');}

function _3G(n) {
refresh('02', '3FFFFFFF', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Enable 3G Automatic mode !").show().css('background', 'rgb(219, 120, 7)');}

function _4G(n) {
refresh('03', '3FFFFFFF', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Enable 4G Automatic mode !").show().css('background', 'rgb(219, 120, 7)');}

function _5G(n) {
refresh('00', '00000000', '7FFFFFFFFFFFFFFF');
suspend = 1, $("#t").html("! Enable 5G Automatic mode !").show().css('background', 'rgb(219, 120, 7)');}

function _showB(n) {
$("#showBand").show();
$("#aa").hide();
$("#bb").show();
}

function _showBclose(n) {
$("#showBand").hide();
$("#aa").show();
$("#bb").hide();
}

function _options(n) {
$("#optin").show();
$("#a1").hide();
$("#a2").show();
}

function _optionsclose(n) {
$("#optin").hide();
$("#a1").show();
$("#a2").hide();
}

function rest(val1){
suspend = 1, $("#t").html("! Restart Router !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,
success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/device/control', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',
data:'<request><Control>'+val1+'</Control></request>',success: function(suspend) { $("#showBand").hide(),suspend = 1, $("#t").html("! Restart Done !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000)},error: function(suspend) { $("#t").html("! Restart Error !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}})}, 2e3)}})}

function power(val1){
suspend = 1, $("#t").html("! ShutDown Router !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,
success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/device/control', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',
data:'<request><Control>'+val1+'</Control></request>',success: function(suspend) { $("#showBand").hide(),suspend = 1, $("#t").html("! ShutDown Done !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000)},error: function(suspend) { $("#t").html("! ShutDown Error !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}})}, 2e3)}})}

function restor(val1){
suspend = 1, $("#t").html("! Restore Factory settings !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,
success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/device/control', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',
data:'<request><Control>'+val1+'</Control></request>',success: function(suspend) { $("#showBand").hide(),suspend = 1, $("#t").html("! Restore Done !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000)},error: function(suspend) { $("#t").html("! Restore Error !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}})}, 2e3)}})}

function changeip() {
suspend = 1, $("#t").html("! Executing The Request !").show().css('background', 'rgb(219, 120, 7)'),setTimeout(function() { suspend = 0, $("#t").html("! The IP Address Is Changing !").show().css('background', 'green'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000) }, 5000),$.ajax({type: "GET",dataType: "text",async: !0,url:'/api/net/plmn-list',success: function(data) {while (xml.indexOf('<Network>') > -1) {sp = xml.slice(xml.indexOf('<Network>'), xml.indexOf('</Network>') + 1);}}})}

function restart() {rest(1);}
function restore() {restor(2);}
function poweroff() {power(4);}

function SaveAnte(){
suspend = 1, $("#t").html("! Executing The Request !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,
success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/device/antenna_set_type', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',data:'<request><antennasettype>' + $("#antenna").val() + '</antennasettype></request>',success: function(suspend) { $("#showBand").hide(),suspend = 1, $("#t").html("! Antenna has been switched !").show().css('background', 'green'),setTimeout(function() { suspend = 0,ReadAntenna(), $("#t").hide("") }, 3000)},error: function(suspend) { $("#t").html("! Antenna Not Switched !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}})}, 2e3)}})}

function SaveAnteo(){
suspend = 1, $("#t").html("! Executing The Request !").show().css('background', 'rgb(219, 120, 7)'),$.ajax({type: "GET",dataType: "text",async: !0,
success: function(data) {
var datas = data.split('name="csrf_token" content="');
var token = datas[datas.length-1].split('"')[0];
setTimeout(function(){
$.ajax({type:"POST", async: true, url:'/api/device/antenna_settings', headers:{'__RequestVerificationToken':token}, contentType: 'application/xml',data:'<request><antenna_type>' + $("#antennao").val() + '</antenna_type></request>',success: function(suspend) { $("#showBand").hide(),suspend = 1, $("#t").html("! Antenna has been switched !").show().css('background', 'green'),setTimeout(function() { suspend = 0,ReadAntenna(), $("#t").hide("") }, 3000)},error: function(suspend) { $("#t").html("! Antenna Not Switched !").show().css('background', 'red'),setTimeout(function() { suspend = 0, $("#t").hide("") }, 3000);}})}, 2e3)}})}

function ReadAntenna() {{{{{
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_type', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var antennastat1;
antennastat1 = $xml.find('antenna1type').text();
if (antennastat1 == '0') {
antennastat1 = 'Internal'; $("#antenna1").css('background','#0d10b4');
} else if (antennastat1 == '1') {
antennastat1 = 'External'; $("#antenna1").css('background','#b4710d');
} else {
antennastat1 = 'Unknown'; $("#antenna2").css('background','#e00700');
}
$("#antenna1").html(antennastat1);

var antennastat2;
antennastat2 = $xml.find('antenna2type').text();
if (antennastat2 == '0') {
antennastat2 = 'Internal'; $("#antenna2").css('background','#0d10b4');
} else if (antennastat2 == '1') {
antennastat2 = 'External'; $("#antenna2").css('background','#b4710d');
} else {
antennastat2 = 'Unknown'; $("#antenna2").css('background','#e00700');
}
$("#antenna2").html(antennastat2);
}})
}
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_status', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var antennasta1;
antennasta1 = $xml.find('antenna1_status').text();
if (antennasta1 == '0') {
antennasta1 = 'Internal'; $("#antenna1").css('background','#0d10b4');
} else if (antennasta1 == '1') {
antennasta1 = 'External'; $("#antenna1").css('background','#b4710d');
} else {
antennasta1 = 'Unknown'; $("#antenna1").css('background','#e00700');
}
$("#antenna1").html(antennasta1);

var antennasta2;
antennasta2 = $xml.find('antenna2_status').text();
if (antennasta2 == '0') {
antennasta2 = 'Internal'; $("#antenna2").css('background','#0d10b4');
} else if (antennasta2 == '1') {
antennasta2 = 'External'; $("#antenna2").css('background','#b4710d');
} else {
antennasta2 = 'Unknown'; $("#antenna2").css('background','#e00700');
}
$("#antenna2").html(antennasta2);
}})
}
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_set_type', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var antcolor = $xml.find('antennasettype').text();
if (antcolor == '0') { $("#antcolor").css('background','#11dada');
} else if (antcolor == '1') { $("#antcolor").css('background','#b4710d');
} else if (antcolor == '2') { $("#antcolor").css('background','#0d10b4');
} else if (antcolor == '3') { $("#antcolor").css('background','#f80099');
}
if ($xml.find('antennasettype').text() == "") {
$("#antenna,.SaveAntenna").css('display','none');
} else {
$("#antenna,.SaveAntenna").css('display','');
$("#infAntena").css('display','none');
$("#antenna").val($xml.find('antennasettype').text());
}
}})
}
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_settings', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var antclr = $xml.find('antenna_type').text();
if (antclr == '3') { $("#antcolor").css('background','#11dada');
} else if (antclr == '1') { $("#antcolor").css('background','#b4710d');
} else if (antclr == '0') { $("#antcolor").css('background','#0d10b4');
} else if (antclr == '2') { $("#antcolor").css('background','#f80099');
}
if ($xml.find('antenna_type').text() == "") {
$("#antennao,.SaveAntennao").css('display','none');
} else {
$("#antennao,.SaveAntennao").css('display','');
$("#infAntena").css('display','none');
$("#antennao").val($xml.find('antenna_type').text());
}
}})
}
}

function getantennastatus() {{{{
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_type', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var ant1 = $xml.find('antenna1type').text();
var ant2 = $xml.find('antenna2type').text();
if (ant1 == '0' && ant2 == '0') {
$("#antennastatus").html('Internal').css('background','#0d10b4');
} else if (ant1 == '1' && ant2 == '1') {
$("#antennastatus").html('External').css('background','#b4710d');
} else if (ant1 == '0' && ant2 == '1') {
$("#antennastatus").html('Mixed').css('background','#f80099');
} else if (ant1 == '1' && ant2 == '0') {
$("#antennastatus").html('Mixed').css('background','#f80099');
}
if (xml == '') {
$("#antennastatus").html('Unknown').css('background','#e00700');
return;
}
}})
}
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_set_type', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var ant1t = $xml.find('antennasettype').text();
if (ant1t == '0') {
$("#antennastatus").html('Auto').css('background','#11dada');
} else if (ant1t == '1') {
$("#antennastatus").html('External').css('background','#b4710d');
} else if (ant1t == '2') {
$("#antennastatus").html('Internal').css('background','#0d10b4');
} else if (ant1t == '3') {
$("#antennastatus").html('Mixed').css('background','#f80099');
}
if (xml == '') {
$("#antennastatus").html('Unknown').css('background','#e00700');
return;
}
}})
}
$.ajax({dataType: "text",type: "GET",async: !0,url: '/api/device/antenna_status', success:function(data) {
var xml = data,xmlDoc = $.parseXML(xml),$xml = $(xmlDoc);
var ant1i = $xml.find('antenna1_status').text();
var ant2i = $xml.find('antenna2_status').text();
if (ant1i == '0' && ant2i == '0') {
$("#antennastatus").html('Internal').css('background','#0d10b4');
} else if (ant1i == '1' && ant2i == '1') {
$("#antennastatus").html('External').css('background','#b4710d');
} else if (ant1i == '0' && ant2i == '1') {
$("#antennastatus").html('Mixed').css('background','#f80099');
} else if (ant1i == '1' && ant2i == '0') {
$("#antennastatus").html('Mixed').css('background','#f80099');
}
if (xml == '') {
$("#antennastatus").html('Unknown').css('background','#e00700');
return;
}
}})
}
}

function ftb() {
$(".color_background_blue").css("background", "#456"),
$(".headcontainer").hide(),
$("body").prepend('<style>
.ff {
border: 2px solid #bbb;
border-radius: 10px;
padding: 5px;
line-height: 2em;
margin: 1px;
}
#t {
color: rgb(0, 0, 0);
background: rgb(219, 120, 7);
margin: 10px;
padding: 10px;
border-radius: 10px;
display: none;
text-align: center;
font-weight: bolder;
font-size: 20px;
}
body{
background: rgb(160, 160, 160);
font-weight: bolder;
border-radius: 10px;
}
table, td{
border: 2px solid rgba(8, 8, 8, 0.37);
border-collapse: collapse;
text-align: center;
vertical-align: middle;
color: inherit;
font-weight: bold;
border-spacing: 0;
}
.color{
text-align: center;
color: red;
font-weight: bold;
font-size: 11px;
}
.colora{
text-align: center;
color: lightgreen;
font-weight: bold;
font-size: 11px;
}
.colorb{
text-align: center;
color: yellow;
font-weight: bold;
font-size: 11px;
}
.colorc{
text-align: center;
color: rgb(0, 255, 255);
font-weight: bold;
font-size: 11px;
}
.label{
background: #357EC7;
color: black;
font-weight: bold;
text-align: center;
}
.LabelSignal{
text-align: center;
font-weight: bold;
padding: 3px 3px 3px 3px;
background: #888;
}
.fixreading{
width: 100%;
text-align: center;
font-weight: bold;
transition: width .3s linear;
border-radius: 10px;
box-shadow: 0 2px 4px 0 rgba(0, 0, 0, 0.39), 0 2px 10px 0 rgba(0, 0, 0, 0.418)!important;
}
.fixid{
text-align: center;
font-weight: bold;
color: rgb(0, 0, 0);
}
.signal-icon{
background:#b7d9fe;
border-radius: 10px;
outline: none;
margin-right: 0px;
display: inline-block;
}
.btn3 {
display: inline-block;
*display: inline;
zoom: 1;
cursor: pointer;
border: 2px solid black;
overflow: visible;
font-weight: bold;
font-size: 11.333px;
text-decoration: none;
white-space: nowrap;
background: green;
text-align:center;
border-radius:10px;
color:white;
font-weight:bolder;
padding: 1px 0px 1px 0px;
}
.btn3:hover{
background: #96aba7;
color: blue;
}
.btn3:active {
background: #00a023;
color: #911a11;
position: relative;
top: 1px;
text-shadow: none;
-moz-box-shadow: 0 1px 1px rgba(0, 0, 0, .3) inset;
-webkit-box-shadow: 0 1px 1px rgba(0, 0, 0, .3) inset;
box-shadow: 0 1px 1px rgba(0, 0, 0, .3) inset;
}
.dropdown0{
background: radial-gradient(at 57% 50%, rgb(56, 57, 61) 0, rgb(49, 55, 90) 40%, rgb(0, 1, 2) 100%);
}
.dropdown{
background: radial-gradient(at 57% 50%, rgb(53, 58, 71) 0, rgb(32, 34, 46) 40%, rgb(3, 14, 26) 100%);
}
.eya1{
background: #01a70f;
color: #000000;
border-radius: 6px;
font-weight: bold;
font-size: 13px;
padding: 1px 1px 1px 1px;
}
.eya2{
background: #d88200;
color: #000000;
border-radius: 6px;
font-weight: bold;
font-size: 13px;
padding: 1px 1px 1px 1px;
}
.eya3{
background: #b30f03;
color: #d1cece;
border-radius: 6px;
font-weight: bold;
font-size: 13px;
padding: 1px 1px 1px 1px;
}
.eya4{
background: #940f82;
color: #00ff00;
border-radius: 6px;
font-weight: bold;
font-size: 13px;
padding: 1px 1px 1px 1px;
}
.eya5{
background: yellow;
color: black;
border-radius: 6px;
font-weight: bold;
font-size: 15px;
padding: 1px 1px 1px 1px;
}
.b-radio{
display: inline-block;
border: 2px solid rgb(192, 192, 192);
width: 16px;
height: 16px;
border-radius: 99px;
vertical-align: middle;
margin-right: 5px;
position: relative;
}
.g-radio{
display: inline-block;
border: 2px solid rgb(192, 192, 192);
width: 16px;
height: 16px;
border-radius: 99px;
vertical-align: middle;
margin-right: 5px;
margin-top: -3px;
position: relative;
}
.nf{
text-align: center;
color: yellow;
}
</style>
<div class="ff">
<div class="ff">
<table class="dropdown0" style="width:100%;text-align:center;font-weight:bold">
<th>
<span style="vertical-align: middle">
<span style="margin-top:2px;vertical-align: middle">
<div id="signal1" class="signal-icon" style="width:10px;height:16px"></div>
<div id="signal2" class="signal-icon" style="width:10px;height:21px"></div>
<div id="signal3" class="signal-icon" style="width:10px;height:26px"></div>
<div id="signal4" class="signal-icon" style="width:10px;height:31px"></div>
<div id="signal5" class="signal-icon" style="width:10px;height:36px"></div>
</span>&nbsp;
<span style="text-align: center;font-size: 11px;font-weight:bold;color: red" id="mode">2G/3G/4G</span>&nbsp;<span class="colorc bband" id="bandB"></span>
</th>
<th>
<span class="nf" id="brand">Service</span>&nbsp;<span class="nu colorc" id="numer">Number Service</span>
<div>
<span class="nf nu" id="name">Country</span>
<div style="text-align:center;vertical-align: middle">
<span class="color">&nbsp;NetMode :&nbsp;</span><span class="colorc" id="LNetMode"></span>
<span class="color">&nbsp;NetBand :&nbsp;</span><span class="colorb" id="LNetworkBand"></span>
<span class="color">&nbsp;LTEBand :&nbsp;</span><span class="colora" id="LLTEBand"></span>
<span class="color">&nbsp;Mode :&nbsp;</span><span class="colorb" id="moden"></span>
<span class="color neo">&nbsp;NetOption :&nbsp;</span><span class="colora" id="NetOption"></span>
</th>
<th>
&nbsp;
<span class="e5" style="vertical-align: middle">
<span style="text-align: center;font-size: 11px;font-weight:bold;color: red" id="leftband">5G</span>&nbsp;<span class="colorc bnr" id="bandNR"></span>
&nbsp;
<span style="margin-top:2px;vertical-align: middle">
<div id="nrsignal5" class="signal-icon" style="width:10px;height:36px"></div>
<div id="nrsignal4" class="signal-icon" style="width:10px;height:31px"></div>
<div id="nrsignal3" class="signal-icon" style="width:10px;height:26px"></div>
<div id="nrsignal2" class="signal-icon" style="width:10px;height:21px"></div>
<div id="nrsignal1" class="signal-icon" style="width:10px;height:16px"></div>
</span>
</th>
</table>
<table style="width:100%;text-align:center;font-weight:bold">
<td class="dropdown0" style="width:25%" Rowspan="2">
<button style="font-weight:bolder;background: rgb(18, 68, 60);color:white;padding: 5px;border-radius:10px;" id="aa" onclick="_showB()">选择频段</button>
<button style="font-weight:bolder;background: rgb(18, 68, 60);color:white;padding: 5px;border-radius:10px;display:none" id="bb" onclick="_showBclose()">选择频段</button>
&emsp;
<button style="font-weight:bolder;background: rgb(18, 68, 60);color:white;padding: 5px;border-radius:10px;" onclick="bandselect()">选择频段编号</button>
&emsp;
<button style="font-weight:bolder;background: rgb(20, 161, 91);color:white;padding: 5px;border-radius:10px;" onclick="speed()">网速测试</button>
&emsp;
<button style="font-weight:bolder;background: rgb(150, 59, 7);color:white;padding: 5px;border-radius:10px;" id="a1" onclick="_options();">设置</button>
<button style="font-weight:bolder;background: rgb(150, 59, 7);color:white;padding: 5px;border-radius:10px;display:none" id="a2" onclick="_optionsclose();">选项</button>
<script>
function speed() {
window.open("https://www.speedtest.cn/");
}
</script>
<div>
<span style="font-weight:bolder;color:rgb(255, 240, 36)">华为CPE路由管家2023浏览器版 V1.2</span>
</div>
</td>
<td style="width:15%" class="label" colspan="2">接收信号强度</td>
<td style="width:8%" class="label pci">小区标识</td>
<td style="width:8%" class="label cell">小区编号</td>
<td style="width:8%" class="label enb">eNBID/小区</td>
<td style="width:8%" class="label">模式</td>
<td style="width:8%" class="label lac" id="tlac">跟踪区域码</td>
<td style="width:8%;display:none" class="label bn3">天线</td>
<td style="width:8%" class="label">天线</td>
<tr>
<td class="LabelSignal">
<div class="fixreading rssib"><span id="rssi">0</span>
<td class="LabelSignal">
<div class="fixreading rssib"><span id="rssipercent">0</span>
<td class="LabelSignal pci"><span id="pci">0</span>
<td class="LabelSignal cell"><span id="cell_id">0</span>
<td class="LabelSignal enb"><span id="enbid">0</span>
<td class="LabelSignal mod"><span id="modee">0</span>
<td class="LabelSignal lac"><span id="lac">0</span>
<td class="LabelSignal bn3" style="display:none"><span id="band3">0</span>
<td class="LabelSignal" id="antennastatus">-</span>
</table>
<table style="width:100%;text-align:center;font-weight:bold">
<tr id="stat" style="font-size:15px;text-align:center;background:#911a11">
<td style="width:100%;position: inherit;color:yellow">
<span id="model" style="color:#d1cece;font-weight:bold">Model</span><span id="Software" style="color:#d1cece;font-weight:bold">Version</span><span id="WebUI" style="color:#d1cece;font-weight:bold">WebUI</span><span id="conn" style="color:#d1cece;font-weight:bold">Status</span><span id="bootTime" style="color:#d1cece;font-weight:bold">Router Runtime</span><span id="ipv4" style="color:#d1cece;font-weight:bold">IP Address</span><span id="wanipv4dns" style="color:#d1cece;font-weight:bold">DNS IPV4</span>
</table>

<table id="optin" style="width:100%;text-align:center;font-weight:bold;display:none">
<td style="width:50%;font-size:big;background:#041b4b">
<button style="font-weight:bolder;background-color: #00d10a;color:black;padding: 5px;border-radius:10px;" onclick="restart()">重启路由器</button>
&nbsp;&nbsp;
<button style="font-weight:bolder;background-color: #f31111;color:black;padding: 5px;border-radius:10px;" onclick="poweroff()">关闭路由器</button>
&nbsp;&nbsp;
<button style="font-weight:bolder;background-color: #1496d3;color:black;padding: 5px;border-radius:10px;" onclick="changeip()">刷新IP地址</button>
&nbsp;&nbsp;
<button style="font-weight:bolder;background-color: #f77070;color:black;padding: 5px;border-radius:10px;" onclick="restore()">恢复网络默认设置</button>
</td>
<td style="width:50%;font-size:big;background:#887610" id="antcolor">
<label class="label" style="padding: 3px 3px 3px 3px;text-align:center;border: 2px solid rgb(255, 255, 255);font-size:12;text-align:center">第一次进入</label>&nbsp;
<label class="label" style="padding: 3px 3px 3px 3px;background: #888;text-align:center;border: 2px solid rgb(255, 255, 255);font-size:12;text-align:center;color:white" id="antenna1">未知</label>
&nbsp;&nbsp;&nbsp;
<label class="label" style="padding: 3px 3px 3px 3px;text-align:center;border: 2px solid rgb(255, 255, 255);font-size:12;text-align:center">第二次进入</label>&nbsp;
<label class="label" style="padding: 3px 3px 3px 3px;background: #888;text-align:center;border: 2px solid rgb(255, 255, 255);font-size:12;text-align:center;color:white" id="antenna2">未知</label>
&nbsp;&nbsp;
<input type="button" class="btn" onclick="ReadAntenna()" value="Show Data" style="font-weight:bolder;border-radius: 10px;height:26px;width:82px">
&nbsp;&nbsp;
<label style="text-align:center" id="antcolor">
<select style="display:none;text-align:center;font-weight:bold" id="antenna">
<option value ="0">Automatic</option>
<option value ="2">Internal</option>
<option value ="1">External</option>
<option value ="3">Mixed</option>
</select>
<select style="display:none;text-align:center;font-weight:bold" id="antennao">
<option value ="3">Automatic</option>
<option value ="0">Internal</option>
<option value ="1">External</option>
<option value ="2">Mixed</option>
</select>
</label>
&nbsp;&nbsp;
<label>
<input type="button" class="btn SaveAntenna" onclick="SaveAnte()" value="Save" style="font-weight:bolder;border-radius: 10px;display:none;height:26px;width:36px">
<input type="button" class="btn SaveAntennao" onclick="SaveAnteo()" value="Save" style="font-weight:bolder;border-radius: 10px;display:none;height:26px;width:36px">
</label>
</td>
</table>

<table id="showBand" style="width:100%;text-align:center;font-weight:bold;display:none">
<td style="width:10%;font-size:big;background:#0bcfd6">
<span style="font-size:big;font-size: 15px;font-weight:bolder;color: black"><b><b>AUTO</b></b></span></td>
<td class="dropdown0">
<input class="btn3" onclick="_auto()" style="font-weight:bolder;font-size:13px" type="button" value="&emsp;自动&emsp;">
<input class="btn3 e5" onclick="_5G()" style="font-weight:bolder;font-size:13px" type="button" value="&emsp;5G&emsp;">
<input class="btn3 sh4G" onclick="_4G()" style="font-weight:bolder;font-size:13px" type="button" value="&emsp;4G&emsp;">
<input class="btn3 sh3G" onclick="_3G()" style="font-weight:bolder;font-size:13px" type="button" value="&emsp;3G&emsp;">
<input class="btn3 sh2G" onclick="_2G()" style="font-weight:bolder;font-size:13px" type="button" value="&emsp;2G&emsp;">
<input style="font-weight:bolder;font-size:13px;padding: 7px;border-radius:10px;background:red" class="btn3" onclick="setBands()" type="button" value="&emsp;接受频段&emsp;">
</td>
<tr>
<td class="sh3G" style="width:10%;font-size:big;background:#01a70f">
<span style="font-size:big;font-size: 15px;font-weight:bolder;color: #000000"><b><b>3G</b></b></span></td>
<td class="dropdown sh3G">
<label id="sWB6">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB6"><span class="eya1" id="w06">&nbsp;800 - B6&nbsp;</label>
<label id="sWB19">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB19"><span class="eya1" id="w019">&nbsp;800 - B19&nbsp;</label>
<label id="sWB5">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB5"><span class="eya1" id="w05">&nbsp;850 - B5&nbsp;</label>
<label id="sWB8">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB8"><span class="eya1" id="w08">&nbsp;900 - B8&nbsp;</label>
<label id="sWB4">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB4"><span class="eya1" id="w04">&nbsp;1700 - B4&nbsp;</label>
<label id="sWB9">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB9"><span class="eya1" id="w09">&nbsp;1700 - B9&nbsp;</label>
<label id="sWB2">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB2"><span class="eya1" id="w02">&nbsp;1900 - B2&nbsp;</label>
<label id="sWB1">&nbsp;
<input type="radio" name="3" class="b-radio" id="WB1"><span class="eya1" id="w01">&nbsp;2100 - B1&nbsp;</label>
</td>
<tr>
<td class="sh4G" style="width:10%;font-size:big;background:#d88200">
<span style="font-size:big;font-size: 15px;font-weight:bolder;color: black"><b><b>4G-FDD</b></b></span></td>
<td class="dropdown sh4G">
<label id="sB12">&nbsp;
<input type="checkbox" class="b-radio" id="B12"><span class="eya2" id="012">&nbsp;700 - B12&nbsp;</label>
<label id="sB13">&nbsp;
<input type="checkbox" class="b-radio" id="B13"><span class="eya2" id="013">&nbsp;700 - B13&nbsp;</label>
<label id="sB17">&nbsp;
<input type="checkbox" class="b-radio" id="B17"><span class="eya2" id="017">&nbsp;700 - B17&nbsp;</label>
<label id="sB28">&nbsp;
<input type="checkbox" class="b-radio" id="B28"><span class="eya2" id="028">&nbsp;700 - B28&nbsp;</label>
<label id="sB29">&nbsp;
<input type="checkbox" class="b-radio" id="B29"><span class="eya2" id="029">&nbsp;700 - B29&nbsp;</label>
<label id="sB20">&nbsp;
<input type="checkbox" class="b-radio" id="B20"><span class="eya2" id="020">&nbsp;800 - B20&nbsp;</label>
<label id="sB27">&nbsp;
<input type="checkbox" class="b-radio" id="B27"><span class="eya2" id="027">&nbsp;800 - B27&nbsp;</label>
<label id="sB5">&nbsp;
<input type="checkbox" class="b-radio" id="B5"><span class="eya2" id="05">&nbsp;850 - B5&nbsp;</label>
<label id="sB18">&nbsp;
<input type="checkbox" class="b-radio" id="B18"><span class="eya2" id="018">&nbsp;850 - B18&nbsp;</label>
<label id="sB19">&nbsp;
<input type="checkbox" class="b-radio" id="B19"><span class="eya2" id="019">&nbsp;850 - B19&nbsp;</label>
<label id="sB26">&nbsp;
<input type="checkbox" class="b-radio" id="B26"><span class="eya2" id="026">&nbsp;850 - B26&nbsp;</label>
<label id="sB8">&nbsp;
<input type="checkbox" class="b-radio" id="B8"><span class="eya2" id="08">&nbsp;900 - B8&nbsp;</label>
<label id="sB32">&nbsp;
<input type="checkbox" class="b-radio" id="B32"><span class="eya2" id="032">&nbsp;1500 - B32&nbsp;</label>
<label id="sB4">&nbsp;
<input type="checkbox" class="b-radio" id="B4"><span class="eya2" id="04">&nbsp;1700 - B4&nbsp;</label>
<label id="sB3">&nbsp;
<input type="checkbox" class="b-radio" id="B3"><span class="eya2" id="03">&nbsp;1800 - B3&nbsp;</label>
<label id="sB2">&nbsp;
<input type="checkbox" class="b-radio" id="B2"><span class="eya2" id="02">&nbsp;1900 - B2&nbsp;</label>
<label id="sB25">&nbsp;
<input type="checkbox" class="b-radio" id="B25"><span class="eya2" id="025">&nbsp;1900 - B25&nbsp;</label>
<label id="sB1">&nbsp;
<input type="checkbox" class="b-radio" id="B1"><span class="eya2" id="01">&nbsp;2100 - B1&nbsp;</label>
<label id="sB30">&nbsp;
<input type="checkbox" class="b-radio" id="B30"><span class="eya2" id="030">&nbsp;2300 - B30&nbsp;</label>
<label id="sB7">&nbsp;
<input type="checkbox" class="b-radio" id="B7"><span class="eya2" id="07">&nbsp;2600 - B7&nbsp;</label>
</td>
<tr>
<td class="sh4G" style="width:10%;font-size:big;background:#b30f03">
<span style="font-size:big;font-size: 15px;font-weight:bolder;color: #d1cece"><b><b>4G-TDD</b></b></span></td>
<td class="dropdown sh4G">
<label id="sB39">&nbsp;
<input type="checkbox" class="b-radio" id="B39"><span class="eya3" id="039">&nbsp;1900 - B39&nbsp;</label>
<label id="sB34">&nbsp;
<input type="checkbox" class="b-radio" id="B34"><span class="eya3" id="034">&nbsp;2000 - B34&nbsp;</label>
<label id="sB40">&nbsp;
<input type="checkbox" class="b-radio" id="B40"><span class="eya3" id="040">&nbsp;2300 - B40&nbsp;</label>
<label id="sB41">&nbsp;
<input type="checkbox" class="b-radio" id="B41"><span class="eya3" id="041">&nbsp;2500 - B41&nbsp;</label>
<label id="sB38">&nbsp;
<input type="checkbox" class="b-radio" id="B38"><span class="eya3" id="038">&nbsp;2600 - B38&nbsp;</label>
<label id="sB42">&nbsp;
<input type="checkbox" class="b-radio" id="B42"><span class="eya3" id="042">&nbsp;3500 - B42&nbsp;</label>
<label id="sB43">&nbsp;
<input type="checkbox" class="b-radio" id="B43"><span class="eya3" id="043">&nbsp;3700 - B43&nbsp;</label>
</td>
<tr>
<td class="e5" style="width:10%;font-size:big;background:#940f82">
<span style="font-size:big;font-size: 15px;font-weight:bolder;color: #00ff00"><b><b>5G</b></b></span></td>
<td class="dropdown e5">
<label>&nbsp;
<input type="radio" id="btnNSA" name="2" class="g-radio"><span class="eya4" id="nsacol">&nbsp;NSA&nbsp;</label>
<label>&nbsp;
<input type="radio" id="btnSA" name="2" class="g-radio"><span class="eya4" id="sacol">&nbsp;SA&nbsp;</label>
<label>&nbsp;
<input type="radio" id="btnSANSA" name="2" class="g-radio"><span class="eya4" id="sansacol">&nbsp;SA+NSA&nbsp;</label>
<label>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
<input type="checkbox" style="margin-top: -2px;" class="b-radio" id="btnNR"><span class="eya5">&nbsp;启用4G和5G上网&nbsp;</label>
</table>
</td>
<table class="allow" style="width:100%;text-align:center;font-weight:bold">
<tr style="font-size:15px;text-align:center;background:#911a11">
<td style="position: inherit;color:yellow" colspan="3">
<span id="bando" style="color:#d1cece;font-weight:bold"></span>
<tr style="font-size:15px;text-align:center;background:#911a11">
<td style="position: inherit;color:yellow" colspan="3">
<span id="allowed" style="color:#d1cece;font-weight:bold"></span>
</table>
</div>
<div style="display:block;overflow: auto;">
<div id="t"></div>
</div>

<div class="ff 2G">
<table class="e3" style="width:100%;text-align:center;font-weight:bold;display:none">
<td style="width:25%" class="label" colspan="2">3G-信号接收功率</td>
<td style="width:25%" class="label" colspan="2">3G-接收载干比信号质量</td>
<td style="width:25%" class="label tx" colspan="2">3G-信噪比（信噪比越高，通信质量越好）</td>
<td style="width:25%" class="label arfc3g">3G-EARFCN</td>
<tr>
<td class="LabelSignal">
<div class="fixreading rscpb"><span id="rscp">0</span>
<td class="LabelSignal">
<div class="fixreading rscpb"><span id="rscppercent">0</span>
<td class="LabelSignal">
<div class="fixreading eciob"><span id="ecio">0</span>
<td class="LabelSignal">
<div class="fixreading eciob"><span id="eciopercent">0</span>
<td class="LabelSignal tx">
<div class="fixreading tx3b"><span id="txpow3g">0</span>
<td class="LabelSignal arfc3g" colspan="2">
<div class="fixreading" style="background:#008013"><span id="earf3g">-</span>
</table>

<table class="e4" style="width:100%;text-align:center;font-weight:bold">
<td style="width:15%" class="label" colspan="2">4G-信号接收功率</td>
<td style="width:15%" class="label" colspan="2">4G-接收信号质量</td>
<td style="width:15%" class="label" colspan="2">4G-信噪比（信噪比越高，通信质量越好）</td>
<td style="width:30%" class="label tx">4G-发射功率</td>
<td style="width:15%;display:none" class="label 4ulf">4G-频率</td>
<tr>
<td class="LabelSignal">
<div class="fixreading rsrpb"><span id="rsrp">0</span>
<td class="LabelSignal">
<div class="fixreading rsrpb"><span id="rsrppercent">0</span>
<td class="LabelSignal">
<div class="fixreading rsrqb"><span id="rsrq">0</span>
<td class="LabelSignal">
<div class="fixreading rsrqb"><span id="rsrqpercent">0</span>
<td class="LabelSignal">
<div class="fixreading sinrb"><span id="sinr">0</span>
<td class="LabelSignal">
<div class="fixreading sinrb"><span id="sinrpercent">0</span>
<td class="LabelSignal tx">
<div class="fixreading tx4b"><span id="txpow4g">0</span>
<td style="display:none" class="LabelSignal 4ulf">
<div class="fixreading" style="background:rgb(0, 255, 106)"><span class="fixid" id="ludfreq">-</span>
</table>

<table class="mcstbs4g" style="width: 100%;display:none">
<td class="label" colspan="3">4G-制编码</td>
<td class="label" colspan="3">4G-网络传输数据块</td>
<td style="display:none" class="label dlmcs5g" colspan="3">5G-制编码</td>
<td class="label" colspan="2">正交幅度调制</td>
<tr>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="dlmcs0reading"><span class="fixid" id="dlmcs0">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="dlmcs1reading"><span class="fixid" id="dlmcs1">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="ulmcsreading"><span class="fixid" id="ulmcs">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="dltbs0reading"><span class="fixid" id="dltbs0">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="dltbs1reading"><span class="fixid" id="dltbs1">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="ultbsreading"><span class="fixid" id="ultbs">0</span>
<td style="width:9%;display:none" class="LabelSignal dlmcs5g">
<div class="fixreading" id="nr0dlmcsreading"><span class="fixid" id="nr0dlmcs">0</span>
<td style="width:9%;display:none" class="LabelSignal dlmcs5g">
<div class="fixreading" id="nr1dlmcsreading"><span class="fixid" id="nr1dlmcs">0</span>
<td style="width:9%;display:none" class="LabelSignal dlmcs5g">
<div class="fixreading" id="nrulmcsreading"><span class="fixid" id="nrulmcs">0</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="QAM0"><span class="fixid">-</span>
<td style="width:9%" class="LabelSignal">
<div class="fixreading" id="QAM1"><span class="fixid">-</span>
</table>

<table style="width: 100%">
<td style="width:15%;display:none" class="label ulf">频率</td>
<td style="width:15%" class="label dlul">4G-上传/速率宽带</td>
<td style="width:15%" class="label arfc4g">4G-载波频点</td>
<td style="width:15%" class="label nrdlul">5G-上传/速率宽带</td>
<td style="width:15%" class="label nrarfc">5G-载波频点</td>
<td style="width:15%" class="label cqi01" colspan="2">信道质量指示</td>

<tr>
<td style="display:none" class="LabelSignal ulf">
<div class="fixreading" style="background:rgb(0, 255, 106)"><span class="fixid" id="dufrequency">-</span>
<td class="LabelSignal dlul">
<div class="fixreading" id="dlulbandreading"><span class="fixid" id="dlbandwidth">0</span>/<span class="fixid" id="ulbandwidth">0</span>
<td class="LabelSignal arfc4g">
<div class="fixreading" id="arfcnreading"><span class="fixid" id="earf4g">-</span>
<td class="LabelSignal nrdlul">
<div class="fixreading" id="nrdlulbandreading"><span class="fixid" id="nrdlbw">0</span>/<span class="fixid" id="nrulbw">0</span>
<td class="LabelSignal nrarfc">
<div class="fixreading" id="nrarfcnreading"><span class="fixid" id="nrearf">-</span>
<td class="LabelSignal cqi01">
<div class="fixreading" id="0cqi"><span class="fixid">-</span>
<td class="LabelSignal cqi01">
<div class="fixreading" id="1cqi"><span class="fixid">-</span>

</table>

<table class="e5" style="width:100%;text-align:center;font-weight:bold;display:none">
<td style="width:15%"class="label" colspan="2">5G-信号接收功率</td>
<td style="width:15%" class="label" colspan="2">5G-接收信号质量</td>
<td style="width:15%" class="label" colspan="2">5G-信噪比（信噪比越高，通信质量越好）</td>
<td style="width:30%" class="label nrtx">5G-信号发射功率</td>
<td style="width:15%;display:none" class="label 5ulf">5G 频率</td>
<tr>
<td class="LabelSignal">
<div class="fixreading nrrsrpb"><span id="nrrsrp">0</span>
<td class="LabelSignal">
<div class="fixreading nrrsrpb"><span id="nrrsrppercent">0</span>
<td class="LabelSignal">
<div class="fixreading nrrsrqb"><span id="nrrsrq">0</span>
<td class="LabelSignal">
<div class="fixreading nrrsrqb"><span id="nrrsrqpercent">0</span>
<td class="LabelSignal">
<div class="fixreading nrsinrb"><span id="nrsinr">0</span>
<td class="LabelSignal">
<div class="fixreading nrsinrb"><span id="nrsinrpercent">0</span>
<td class="LabelSignal nrtx">
<div class="fixreading nrtxp"><span id="nrtxpow">0</span>
<td style="display:none" class="LabelSignal 5ulf">
<div class="fixreading"style="background:rgb(0, 255, 106)"><span class="fixid" id="nrudfreq">-</span>
</table>
</div>
</div>
')}

  界面预览： 第二款电脑端的工具名字叫做HiLink Monitor，从名字就可以看出是专门给华为使用的。 第三款的名字叫做CPEManager，是一款电脑端和手机端均可以使用的，支持华为、中兴、烽火的强大的cpe调试软件，强烈推荐这个。 电脑端： 手机端： 附件下载包内容：

1. CPEManager_3.6.4.apk
2. CPEManager_3.6.4.zip
3. HiLinkMonitor.zip
